Claro Inc products

Claro high efficiency all-stainless-steel liquid ring compressors are quiet, proven low-maintenance, and delivered on a skid complete with all biogas safety components for quick and easy connection. Due to the absence of wearing parts such as pistons and sliding vanes, liquid ring compressors are known for their simplicity of design and low maintenance requirements. The impeller assembly is the only moving part, which rotates freely in the casing without metal-to-metal contact. This means that no internal lubrication is required no oil contamination of sludge or drains and no messy and expensive oil to change on a regular basis. Also, the use of water serves as a natural explosion-proofing device in a biogas environment.

Claro designs and manufactures three proprietary heat exchangers that heat, cool, and recover energy by means of water-to-sludge or sludge-to-sludge energy transfer.

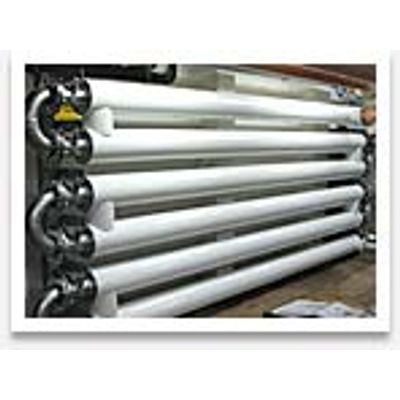

Claro designs and manufactures proprietary modular tube-in-shell heat exchangers that are simple to install and disassemble, deliver maximum heating and cooling transfer efficiencies, and require no maintenance attention. Consistent and large throughput diameters prevent clogging even with poorly screened sludges and other process liquids.

Claro designs and manufactures proprietary large-gap heat exchangers that deliver maximum heating and cooling transfer efficiencies for water-to-sludge and direct sludge-to-sludge applications. Consistently-sized and large throughput diameters prevent clogging even with poorly screened sludges and other process liquids. Quick and direct access to all heat exchanger internals doors open on both sides of the unit. Standard and custom heating and cooling capacities with very compact footprints.

Claro provides complete heat and energy recovery systems for municipal, industrial, and agricultural applications. We can recover up to 85% of outgoing heat energy from process tanks such as anaerobic digesters with Claro modular tube-in-shell or large gap heat exchangers. Energy cost-savings are immediate and translate into very quick pay-back periods.
