Biogas Compressors
From Anaerobic Digestion

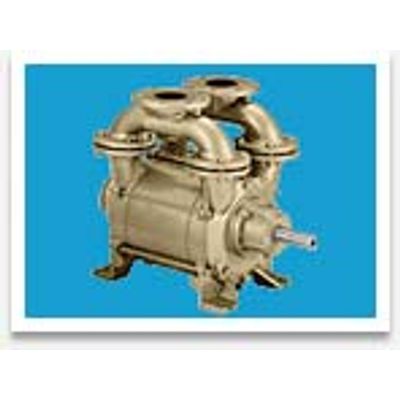

Claro high efficiency all-stainless-steel liquid ring compressors are quiet, proven low-maintenance, and delivered on a skid complete with all biogas safety components for quick and easy connection. Due to the absence of wearing parts such as pistons and sliding vanes, liquid ring compressors are known for their simplicity of design and low maintenance requirements. The impeller assembly is the only moving part, which rotates freely in the casing without metal-to-metal contact. This means that no internal lubrication is required no oil contamination of sludge or drains and no messy and expensive oil to change on a regular basis. Also, the use of water serves as a natural explosion-proofing device in a biogas environment.
-
Most popular related searches
Our units have an especially robust and efficient ...
Our units have an especially robust and efficient construction: a solid monoblock stainless steel casting and longer shaft for extra strength; extreme-duty sealed bearings that are specially isolated from the process area; solid, fixed alignment unlike V-belt driven arrangements; and a special impeller that uses less seal fluid.
We can also reduce water intake from over 50% to 100% with a closed loop, full-recovery configuration or, under certain conditions, use 100% plant effluent. Claro compressors have run for 7+ years on plant effluent without maintenance. Claro compressor units also function at a low noise level maximizing operator safety and comfort.
Design Features & Advantages
- Supplies 100% oil-free biogas no oil contamination of sludge or drains
- Low operating noise level much quieter than sliding vein compressors
- Uses water as a compressant no messy and expensive oil to change on a regular basis
- Water compressant serves as natural explosion-proofing in a biogas-handling environment
- Plant effluent can be used in lieu of potable water or a full water recovery system implemented
- Special impeller uses less seal fluid
- Energy efficient delivers impressive energy cost-savings as part of a Claro Big Bubble Gun Mixer™ system
- Long-term reliability / ultra-low maintenance
- Designed for heavy duty applications all-stainless-steel construction and manufactured to ISO 9001 standards
- Can operate for 7+ years on plant effluent with no maintenance attention
- Almost no maintenance is required only one moving part
- Heavy duty bearings mounted external to the pumping chamber
- Solid monoblock stainless steel casting and longer shaft for extra strength
- Solid, fixed alignment unlike V-belt driven arrangements
- Used in all types of biogas positive pressure and vacuum applications: digester gas mixers, co-generation facility contexts, and more
- Single stage compressor sizes up to 1200 scfm (2039 m3/hr), 28 psig (2 bar) pressure
- Other capacity sizes available to suit application
