EcoFasten Solar products

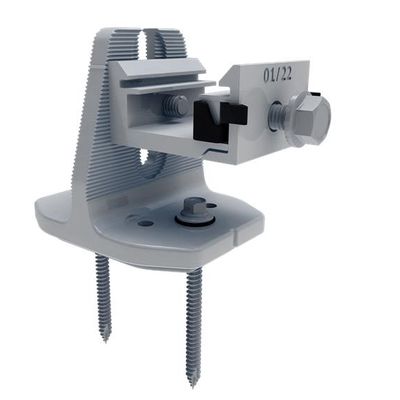

Designed for use with our rail-based ClickFit System, Smart Foot easily attaches to composition shingle roofs. Fabricated from cast aluminum, the ClickFit Smart Foot features our proprietary UltraGrip Technology™. A layer of foam cushioning helps to embed the waterproofing sealant deep into the granules of the shingle and flexibly conforms over the steps commonly found on architectural-style shingles. Simply peel the backing off the release liner from the underside of the UltraGrip pad and place the mount on the shingles. Smart Foot comes packaged with the ClickFit “Clicker.” Screws are sold separately.

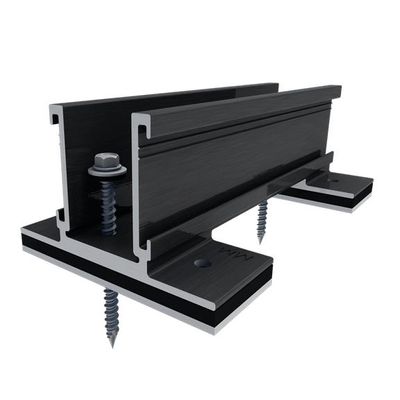

RockIt Smart Slide is the ultimate solution for fast and easy installation of the rail-less RockIt racking system on composition shingle roofs. Smart Slide conforms to UL 2703 and UL 2703A. Smart Slide also conforms to UL 441 and TAS 100 (A)-95 for wind and wind-driven rain, providing a super-strong watertight seal that is achieved through compression, in most cases without the need for additional sealant.

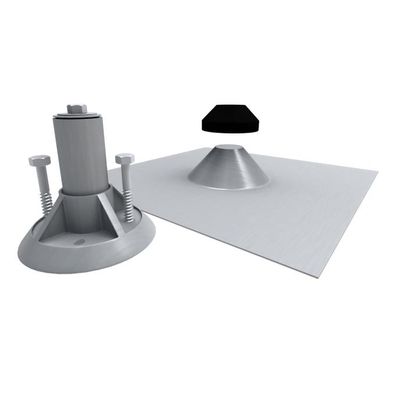

The solar industry favorite QB-1 system utilizes a super-strong and extremely versatile base that can be used on composition shingle, tile, shake, slate, metal shingle, and low slope rooftop solar applications. QB-1 is the ideal rail-based solution for mounting solar on new residential construction projects because the mounts can be installed before the roofing material, allowing for the roof to be shingled or tiled around the installed mounts. Aluminum cone flashings are sized specifically to fit the post and are available when being installed on composition shingle and tile roofs.

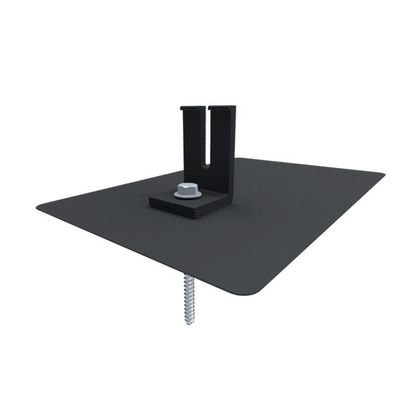

GF-1 is our most versatile solution for attaching solar to composition shingle roofs. Install the flashing using a single fastener for a quick & easy installation. When using the GF-1 flashing grommet and an EcoFasten compression bracket, a watertight seal is created, maintaining the integrity of the roof.
