Endeas Oy products

QuickSun 800-series Module Solar Simulators use Xenon flash tubes for simulating solar irradiation. Complete IV-characteristics are recorded during one flash at desired intensity level when module is swept electronically from short circuit to open circuit.

QuickSun 600Lab establishes a completely new product class for PV module laboratories – Class A+A+A+ solar simulator and high-resolution EL inspection as a single table top system. The size of the system is comparable to the most compact solar simulators or EL inspection tools on the market – with the exception that QuickSun 600Lab includes them both! Just slide the module in and connect the cables, and the system provides both the I-V characteristics and EL image within seconds – ready for automatic reporting or further analysis.

QuickSun 540XLi is a versatile testing system for qualifying the largest-area BIPV modules with dimensions up to 360 × 210 cm². The basic setup includes a top-class solar simulator that measures modules in the sunny-side up position. Additional measurement methods can be integrated into the same system, including high-resolution EL imaging. With the easy-to-operate system and our expert support, even entrants into the photovoltaics manufacturing business can easily adopt the best quality control practices established in the industry.

QuickSun 800-Series solar simulators are always tested, certified and results reported exactly as specified in the applicable solar simulator standards and this is being proved by a globally recognized inspection body, SGS Fimko Ltd.

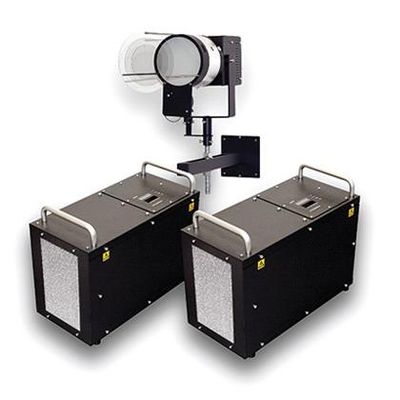

QuickSun 130E is a versatile manually operated Xenon flash simulator for testing both ordinary and high capacitance crystalline silicon solar cells. A detailed test report is included with every simulator, proving class A+A+A+ performance with respect to spectrum, irradiance non-uniformity, and short-term instability (STI). The Xenon technology spectrum is continuous, from 300 nm up to 1,200 nm, and it complies without any reservations with the future standard IEC 60904-9 Ed.3. Long-term instability (LTI) is also within class A+ tolerances during the 100 ms long flash pulse – even the high efficiency and capacitance IBC and HJT modules can be measured accurately by applying the Capacitance Compensation (CAC) method.

QuickSun 550Ei is a versatile testing system for qualifying of PV modules with dimensions up to 105 x 205 cm2. Basic set up includes a top class solar simulator which measures modules in sunny side up position enabling e.g. soiling simulations. Several additional measurement methods can be integrated to the same system including high resolution EL imaging with analysis software from one of the most recognized EL system suppliers. Several additional measurement methods can be integrated to the same system including high resolution EL imaging, bypass diode functionality test, temperature coefficient measurement, and true nA scale leakage current measurement.

Unique combination of automation and top quality module characterization tools. QuickSun 550CE module testing station is a fully automated solar simulator for qualifying of PV modules with dimensions up to 105 x 205 cm². High resolution EL imaging, Electrical Safety measurement tools are integrated in the same system. Throughput of 60–150 modules per hour is achieved depending on the applied EL and Electrical Safety testing parameters.

We can design customized PV testing solutions tailored for your needs.

Accurate flash testing of high-efficiency solar cells and modules with QuickSun solar simulators using Capacitance Compensation (CAC). High-efficiency solar cells – such as passivated emitter and rear contact (PERC) cells, heterojunction technology (HJT) cells, and interdigitated back-contact (IBC) cells – are currently gaining in production volume and market share. However, the solar simulators used in many manufacturing lines cannot accurately measure the maximum power and other characteristics of these devices. Typically, maximum power is underestimated, causing manufacturers to sell their products with lower power, and thus lower price, than necessary.

Spectral match of QuickSun 550CE is class A+ according to both editions of the standard IEC 60904-9. The new parameters on spectrum quality are calculated on the left. The graph shows spectral deviation is green (positive deviation) and red (negative deviation).
