6 products found
eQube Power Ltd products
eQube - Modular LFP Battery System
532kWh IP54 Outdoor Rated LFP Battery System. eQube is meeting the global demand for safe and reliable battery power by creating the world`s best-in-class UL9540A certified LFP (LiFePO4) Lithium-iron Phosphate battery system and DC combiner subsystems.

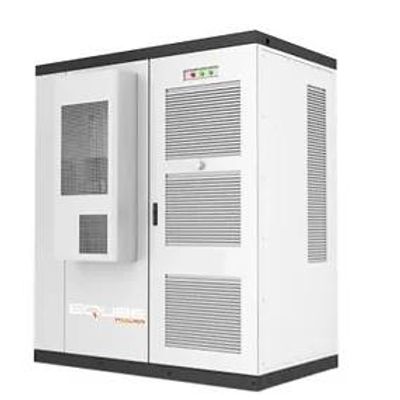

eQube - 100KW - 300KW@400V AC-Coupled Battery Energy Storage System (BESS)
100-300kW@400Vac; 125-375kW@480V; 175-525kW@600V; 200-600kW@690Vac Modular PCS - AC Coupled system delivering 1 to 4hrs LFP BESS. Operate under Grid-tied and Off-grid application.

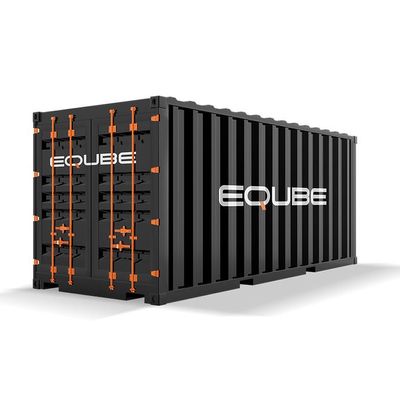

eQube - 3.75MW - 5MW AC-Coupled Battery Energy Storage Systems (BESS)
5MW_MV PCS [20ft ISO IP54 Container] AC-Coupled BESS for commercial and industrial applications. CATL LFP BESS 3.79MWh (1P), 4.07MWh (0,5P), 5.6MWh (0.5P or 0.25P) [20ft ISO IP54 Container] AC-Coupled BESS for utility applications. Modular design, flexible power configuration. 8,000 or 12,000 Long Life Cycle Battery. Lithium Iron Phosphate [LFP] - Pouch Type Cell. UL9540 & UL9540A Certified System; Liquid Cooling System. Our modular AC coupled BESS is suitable for most applications, both behind the meter and front of the meter applications. Available in duration of 1, 2, 3, and 4hrs battery system. All of our BESS are factory-built to last, accessorized to meet international standard and specifications with multiple protections, and fully tested.
eQube - 1.0 MW- 1.725 MW AC-Coupled Battery Energy Storage Systems (BESS)
SE1000/1200/1500/1725 - AC Coupled BESS Delta Power Conditioning System (PCS) is a bi-directional energy storage inverter for grid applications including power backup, peak shaving, PV self-consumption, PV smoothing, etc. Delta Megawatt PCS provides power capacity from 1000kVA to 1725 kVA with 98.5% efficiency. Delta PCS 1000kW (400Vac) 3P3W - (IEC) 50 or 60Hz Delta PCS 1200kW (480Vac) 3P3W - (IEC & UL) 50 or 60Hz Delta PCS 1500kW (600Vac) 3P3W - (IEC & UL) 50 or 60Hz Delta PCS 1725kW (690Vac) 3P3W - (IEC & UL) 50 or 60Hz Available in 1 to 4hrs with CATL EnerOne+ LFP BESS (IEC & UL) Microgrid Energy Mangement System [EMS]: Applications: Advanced P/Q, Frequency/Voltage control Utility-grade protection designed for harsh environment DC and AC-coupled storage applications Automatic voltage and frequency regulation Active and reactive power compensation Anti-islanding detection, off-grid operation
eQube - 30 KW - 90 KW DC-Coupled Hybrid Battery Energy Storage Systems (BESS)
ALL-IN-ONE, DC-Coupled BESS for Microgrid application. 30/60/90kWAC_266KWh_45/90/135kWp for PV Solar inputs. Integrated with world leading LFP battery system. Available in 8,000 or 15,000 cycle life battery. IEC & UL9540 & UL9540A Certified. S90 is a small commercial modular BESS, operate under Grid-tied and Off-grid application. S90 - DC-Coupled Hybrid BESS 25~50kW (208Vac) 3P3W (IEC & UL) - 50 or 60Hz 30~90kW (400Vac) 3/N/PE, (IEC) - 50 or 60Hz 30~90kW (480Vac) 3P3W (UL) - 50 or 60Hz 45~90kW (DC/DC) for PV inputs (IEC & UL) - Option Max up to 266kWh (0.5P) of LFP BESS (IEC & UL)
