Sanitary Shell & Tube Heat Exchangers - 17 Series Single Tubesheet Sanitary Shell & Tube Heat Exchangers

Exergy - Shell & Tube Heat Exchanger

The 17 Series Single Tubesheet Sanitary Shell & Tube Heat Exchanger from Exergy LLC provides a compact and efficient solution for thermal management needs. Its design incorporates 19 tubes made of 316L stainless steel, offering robustness and high resistance to corrosion. Each tube measures 4.00 inches (102 mm) in length with an outer diameter of 0.094 inches (2.4 mm), providing a total heat transfer area of 135 cm² (20.9 in²). The heat exchanger features a 3/4 inch ASME-BPE flange on the tube side and a 1/4 inch NPT Female fitting on the shell side. It operates under maximum conditions of 1500 psi (103 bar) on the tube side and 1000 psi (69 bar) on the shell side with a temperature threshold of up to 800 ºF (425 ºC). The product contact surface is finished to a maximal smoothness of SF4: 15 µin (0.4 µm) Ra and electropolished. The device is engineered for applications requiring precise thermal control and reliable performance, suitable for industries such as pharmaceutical, semiconductor, and chemical processing.

Exergy LLC - Shell & Tube Heat Exchanger

The 17 Series Single Tubesheet Sanitary Shell & Tube Heat Exchanger by Exergy LLC is engineered for applications requiring compact design and superior thermal performance. Constructed entirely from 316L stainless steel, the exchanger features 19 tubes, each 0.094 inches in outer diameter and 8 inches long. The product contact surfaces are electropolished to a maximum roughness average (Ra) of 15 µin (0.4 µm), classified as SF4. With a shell diameter of 0.75 inches, the unit maintains a heat transfer area of 43.4 square inches (280 cm²). The equipment is rated to handle up to 1500 psi (103 bar) on the tube side and 1000 psi (69 bar) on the shell side, and can operate effectively at maximum temperatures of 800°F (425°C). It uses a 3/4-inch ASME-BPE flange fitting on the tube side and a 1/4-inch NPT female fitting on the shell side. This heat exchanger is designed to meet stringent sanitary standards and is suitable for various industrial applications, including pharmaceutical, biotech, and food processing.

Sanitary Tube-in-Tube Heat Exchangers

Exergy - Sanitary Tube-in-Tube Heat Exchanger

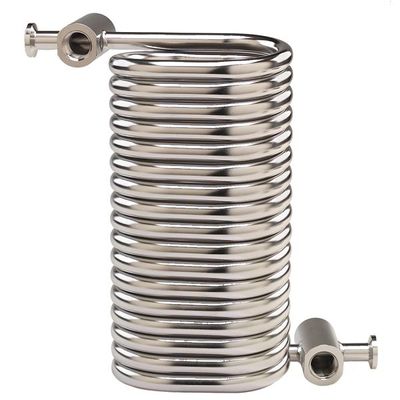

The 00459-01 Sanitary Tube-in-Tube Heat Exchanger from Exergy LLC is engineered to provide high efficiency in heat transfer for sanitary applications. It boasts a compact design with inner tubes measuring 0.25 inches OD with a 0.035-inch wall and outer tubes at 0.50 inches OD with a 0.035-inch wall. The unit is constructed from 316L Stainless Steel which ensures high durability and corrosion resistance. It features an inner tube pressure capacity of up to 3200 psi at 800°F and up to 4500 psi at 100°F, while the outer tube can handle up to 1000 psi at 800°F and 2000 psi at 100°F. Flange connections follow ASME BPE standards, supporting versatility in various industrial applications. Additionally, it has a heat transfer area of 1.2 ft² and a maximum product contact surface finish of SF4: 15 µin (0.4 µm) Ra Max, ensuring optimal performance and compliance with sanitary standards. The heat exchanger weighs 5.90 lbs (2.70 kg) when empty, making it suitable for both stationary and mobile setups within the pharmaceutical, biotech, and food processing industries.

Exergy LLC - Sanitary Tube-in-Tube Heat Exchangers

The Exergy Sanitary Tube-in-Tube Heat Exchangers, model 00459-02, are engineered for applications requiring robust thermal performance within a compact design framework. Constructed with 316L stainless steel, these exchangers are ideal for sanitary environments. The inner tube size measures 0.25 inches OD with a 0.035-inch wall thickness, while the outer tube size is 0.50 inches OD with a 0.035-inch wall. These features ensure efficient heat transfer with a surface area of 1.2 ft² (0.11 m²). The exchangers fit with 1/2 inch ASME BPE Flange for the inner tube and 1/2 inch NPT Female for the outer tube. With pressure capabilities ranging from 3200 psi at 800 ºF to 4500 psi at 100 ºF for the inner tube and 1000 psi at 800 ºF to 2000 psi at 100 ºF for the outer tube, these units provide stability and reliability. They are particularly well-suited for industries such as biotech, pharma, and food processing, where maintaining clean and sterile environments is essential.
