Expander Tech S.L. products
Heat Pump
Rank - Machines for Heat Sources of Lower Temperatures
When there are demands for useful heat with temperatures above 100°C, the Rank® HP equipment allows to take advantage of heat sources of lower temperature and satisfy the demands of useful heat at a higher temperature. It is a high temperature heat pump, with maximum temperatures of heat production of 140ºC, and values of COP of 4.
Heat Pump
Rank - Heat Pump
When there are demands for useful heat with temperatures above 100°C, the Rank HP equipment allows to take advantage of heat sources of lower temperature and satisfy the demands of useful heat at a higher temperature. It is a high temperature heat pump, with maximum temperatures of heat production of 140ºC, and values of COP of 4. Within the range of Rank® HP products, we find different products that allow the generation of useful heat with thermal powers of 120 kWt to 500 kWt.
ORC

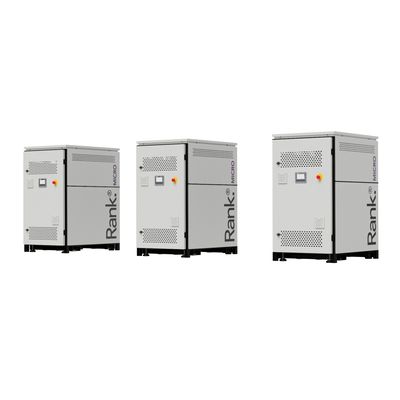

Rank - Machines for Very Low Power Applications
For very low power applications (microgeneration/microcogeneration) or demonstration/didactic installations, Rank® MICRO allows electric generation from heat sources of very low temperature (from 90ºC). Also, it is complemented with the possibility of using the useful heat at temperatures up to 50 °C. Rank® MICRO allows electric generation up to 2.5 kWe and the use up to 50 kWt.

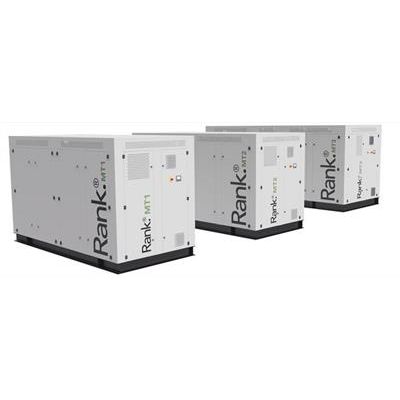

Rank - Machines for Heat Sources with Temperatures from 120 °C to 150 °C
The Rank® MT category uses heat sources with temperatures from 120 °C to 150 °C. In addition to its excellent electrical performance, it allows the heat sink can be used as water at temperatures up to 50 °C. This heat is available for several applications with low-temperature thermal requirements. Within the range of Rank® MT products, up to 900 kWt is used to generate 90 kWe of clean electric energy.

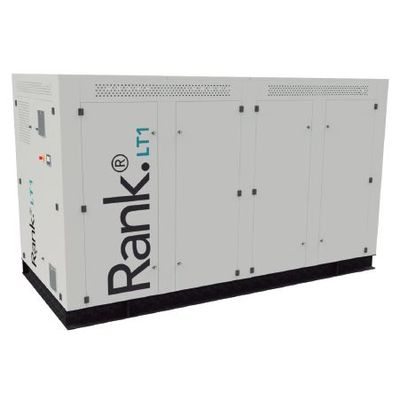

Rank - Machines for Heat Sources with Very Low Temperatures
In the case there are heat sources with very low temperatures, above 90 °C, the Rank® LT1 machine allow their use through electric generation, with an electric generation up to 20 kWe The electrical generation is complemented with the possibility of using the heat produced in the condenser at temperatures up to 50 °C.
