Rank - Model LT1 - Machines for Heat Sources with Very Low Temperatures
From ORC
In the case there are heat sources with very low temperatures, above 90 °C, the Rank® LT1 machine allow their use through electric generation, with an electric generation up to 20 kWe The electrical generation is complemented with the possibility of using the heat produced in the condenser at temperatures up to 50 °C.

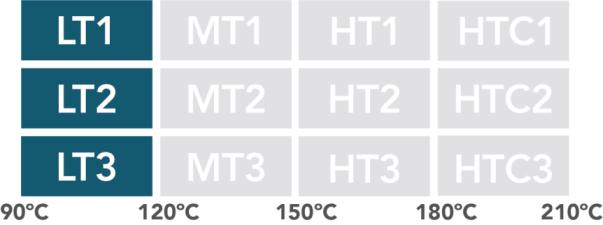

A Rank? machine for every need
Whatever your need is, we have a Rank® machine that can be adapted to it, through a variety of products that
cover a wide range of thermal and power applications.
What is Rank??
The Rank® equipment allows the production of electrical energy and useful heat using a low-temperature heat
source, with the associated economic and environmental benefits.

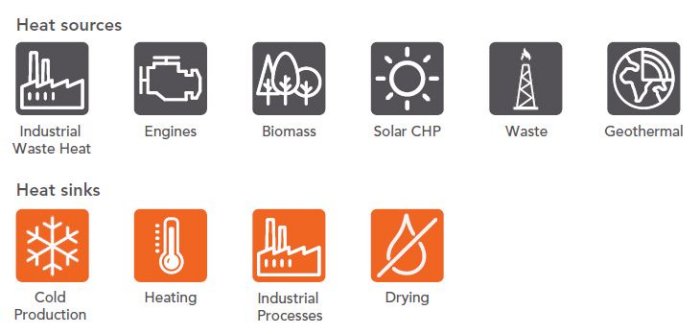

Applications
Among the main applications of the Rank® ORC machines, we highlight the waste heat recovery and the utilisation of
renewable heat sources, with a special interest in cogeneration and trigeneration systems.

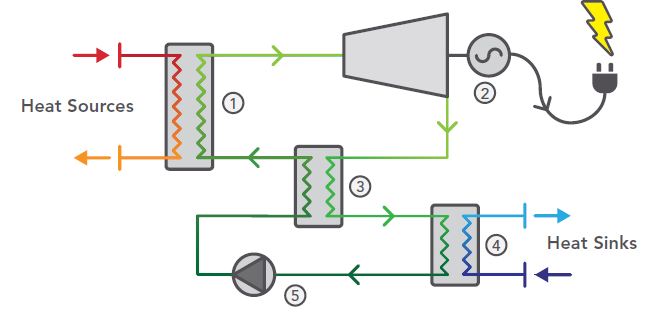

Evaporator A heat exchanger that provides heat to...
Evaporator A heat exchanger that provides heat to the high-pressure working fluid and passes from subcooled liquid to superheated vapor (in the form of water or thermal oil).
Turbine The expansion of the superheated vapor is used to generate clean electricity.
Regenerator To increase the efficiency of the system, the expanded working fluid is used to preheat the high-pressure liquid at the inlet of the evaporator.
Condenser It produces useful heat (in the form of water) from the condensation of the working fluid at low pressure.
Pump The pressure of the working fluid is increased, and the ORC cycle is completed.
