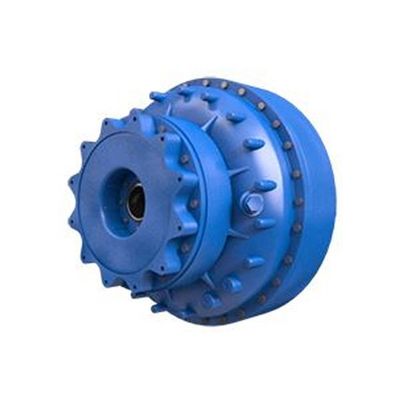

To satisfy starting and running characteristics of industrial machines Fluidomat offer three circuit types to give starting torque down to 120% of nominal torque. Type SM and HF are basic coupling without delayfil chamber. Starting torque adjustable in the range of 180% to 275%. Type SMD and HFD are couplings with delayfil chamber. Starting torque adjustable in the range of 140% to 275%. Type SM-DX and HF-DX are couplings with extended delayfil chamber. Starting torque adjustable in the range of 120% to 270%. Normal operating slip - 2% to 5% depending on coupling size and starting torque value. Fusible plug blow off temperature 130°C as standard. Optional 160°C. Suitable for two consecutive starts from hot and three from cold.

To satisfy starting and running characteristics of industrial machines Fluidomat offer three circuit types to give starting torque down to 120% of nominal torque. Type SM and HF are basic coupling without delayfil chamber. Starting torque adjustable in the range of 180% to 275%. Type SMD and HFD are couplings with delayfil chamber. Starting torque adjustable in the range of 140% to 275%. Type SM-DX and HF-DX are couplings with extended delayfil chamber. Starting torque adjustable in the range of 120% to 270%. Normal operating slip - 2% to 5% depending on coupling size and starting torque value. Fusible plug blow off temperature 130°C as standard. Optional 160°C. Suitable for two consecutive starts from hot and three from cold.

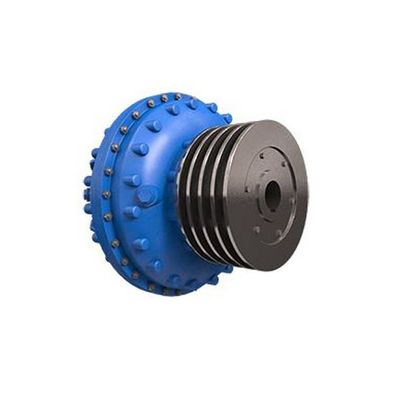

SMP are fluid couplings for belt drive offering a wide range of pulley diameters. Have an in built delayfil chamber enabling quick decay of motor starting current as motor accelerates to 90% speed faster. Suitable for two consecutive starts from hot and three from cold. Fusible plug blow off temp. is 130°C as standard. Optional 160° C.

Type AR Fluid Couplings are with annular ring and extra long delayfil chamber. During the initial rotation, the annular ring fills up and the working circuit is partially emptied enabling very low torque transmission during motor run up (acceleration). This enables very quick acceleration of motor speed and quick decay of motor current. This is followed by increase in transmitted torque by gradual emptying of delayfil chamber oil into the working circuit. The torque is builtup gradually and enables controlled acceleration torque to the driven machine.

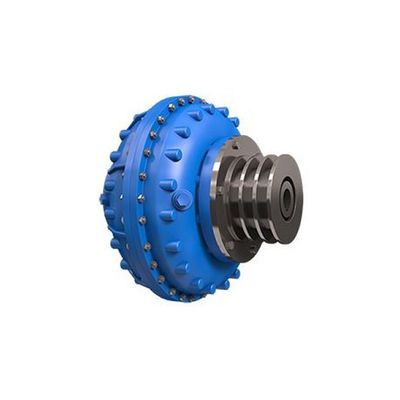

HD-P are belt drive and are offered in different executions of with or without delayfil chamber. These couplings can be supplied without pulley and the pulley within specified range tabulated below, can be manufactured and installed by the buyer at his end. This proves flexibility for stocking and use of pulleys of different specification on the same coupling. Suitable for two consecutive starts one from hot and three from cold. Fusible plug blow off temperature 130 degree centigrade as standard optional 160 degrees centigrade. Oil to be used Turbine Oil ISOVG3

Starting torque adjustable in the range of 180-275%. Normal operating slip is 2 to 5% depending on coupling size and starting torque value. Suitable for two consecutive starts from hot and three from cold. Fusible plug blow off temperature is 130°C standard. Optional: 160°C.

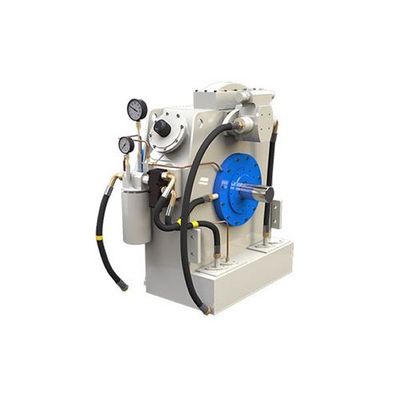

Fluidomat offers drain type fluid couplings HLN-LC for combustion engine3 drive. The coupling is enclosed into a stationary housing which is connected to the engine by SAE housing. Suitable flexible coupling is provided for connection to engine flywheel.
The output shaft of fluid coupling can be connected to the driven machine through an elastic coupling/cardon shaft or a pulley. The HLN couplings meets the requirement of power take off unit with all the advantages of fluid coupling.
