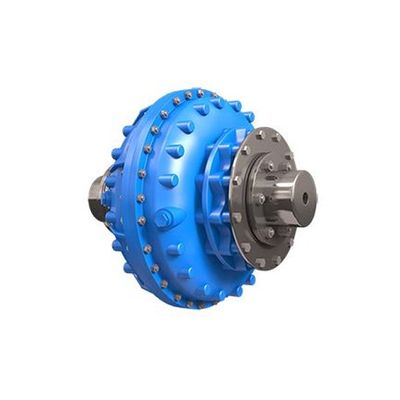

Fluidomat - Model Type HF/HFD/HF-DX -Constant Fill / Fixed Speed Coupling

To satisfy starting and running characteristics of industrial machines Fluidomat offer three circuit types to give starting torque down to 120% of nominal torque. Type SM and HF are basic coupling without delayfil chamber. Starting torque adjustable in the range of 180% to 275%. Type SMD and HFD are couplings with delayfil chamber. Starting torque adjustable in the range of 140% to 275%. Type SM-DX and HF-DX are couplings with extended delayfil chamber. Starting torque adjustable in the range of 120% to 270%. Normal operating slip - 2% to 5% depending on coupling size and starting torque value. Fusible plug blow off temperature 130°C as standard. Optional 160°C. Suitable for two consecutive starts from hot and three from cold.
