10 products found
Free Energy Innovation AS Products
-
HYSS
-
Model HYSS - Hybrid Heating Pump
Free Energy’s vision is to provide solar-based energy systems that can deliver all the energy that a building could need. That's why we have developed HYSS - a hybrid heating pump - the most cost-efficient and environmentally friendly heating system on the market. HYSS - Hybrid Solar System - an innovative combination solution that utilizes solar heat and heat pump technology in an optimal way. HYSS can easily be configured into a geothermal pump, ...
-
Hybrid Heat Pump
-
Heat Pump Technology - General
A heat pump collects heat from the bedrock, ground, lakes (watercourse) or the outdoor air and it has four main components. The construction is built around an evaporator and a compressor as well as a condenser and a throttle valve. The heat that is extracted from, for example, a drill-hole is transferred to a refrigerant, which vaporizes when energy is absorbed. The compressor increases the pressure of the refrigerant gas, which significantly raises the ...
-
Geothermal Heat Pump

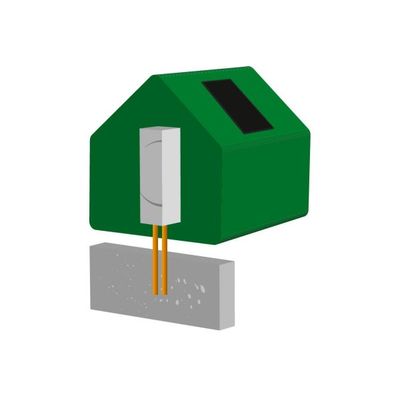

A geothermal heat pump collects heat from the bedrock and groundwater with a circulating liquid (brine) in a collector tube. The drilling depth is adapted to the building’s heat demand (power and energy requirements) and will normally vary between 120 - 200 meters. There should be at least 20 meters between the boreholes so that they do not affect one another or cool each other down. HYSS – Hybrid ...
-
Ground Source Heat Pump
The ground source heat pump collects heat from a collector tube in the ground. The tubes should be in frost free depth, in other words, 1.0 - 1.5 meters deep. The distance between the tubes should be at least 1.0 meter to be sure that they won’t affect each other. The length of the tubes must be adapted to the building’s power and energy requirements for heat and hot water. A conventional single family home requires 300-600 meters tube ...
-
Lake Heat Pump
A lake heat pump works the same way as a ground source or geothermal heat pump. Instead of collecting the heat from a borehole or a loop in the ground, a collector tube will be used on the bottom of a lake or pond. The tube is kept in place with weights. The length of the tube is determined by the power and energy requirement of the house for heat and hot ...
-
Air to Water - Heat Pump

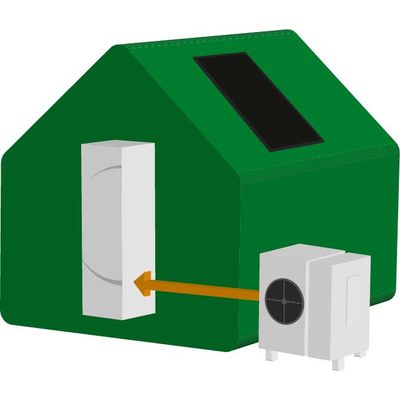

An air to water heat pump takes advantage of the heat content of the outdoor air. The air heats up the brine and then the refrigerant, which is then vaporized and condensed in the same way as in a geothermal or ground source heat pump. The efficiency is generally lower for an air to water heat pump and it is therefore more suitable in the southern regions of the Nordic countries and especially by the coast where the annual average temperature is somewhat ...
-
Solar Energy
-
Solar Energy - Solar Cells (PV), Solar Collectors (T) and Hybrid Panels (PV/T)
Solar radiation hitting the earth's surface can be used for a lot of things. We are talking primarily about solar collectors for heating and hot water preparation and solar panels for production of electricity. But now it is even possible to get both electricity and heating from the same panel, so-called hybrid panels (PV/T). Solar radiation may also be used for passive heating and daylight through windows besides ...
-
Model T - Solar Collectors System
Free Energy's solar collectors come from one of Europe's most innovative and leading manufacturers. Due to the manufacturer's quality requirements and certifications, we offer a 10-year product warranty on the solar ...
-
Model PV/T - Hybrid Panels
Free Energy's hybrid panels come from one of the world's most innovative and leading manufacturers. Due to the manufacturer's quality requirements and certifications, we offer a 10-year product warranty on the hybrid panels (PV/T) and up to 20 years product warranty for the solar panels (PV). In addition, there is a 25-year performance guarantee on solar electricity production for both PV/T and PV ...
-

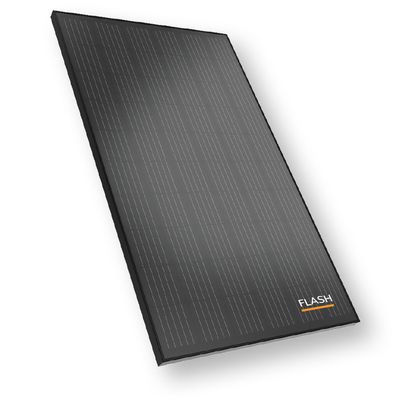

Model PV - Solar Panels
Free Energy's solar panels come from the same manufacturer as the hybrid panels and have the same design and offers a uniform appearance. The monocrystalline solar cells have one of the best levels of efficiency on the market. The product warranty is up to 20 years and the performance guarantee is 25 ...
