The split pressurized solar water heater composes of heat pipe solar collector, storage water tank, workstation system, accessories and interconnecting pieces.

Solar vacuum tubes are plug directly inside manifold tank, when cold water in evacuated tubes is heated with solar irradiation, as the specific gravities of hot water and cold water are different, hotter water goes upward to manifold tank and colder water goes downward to glass vacuum tubes. through this continuous circulation, the cold water in manifold tank will be gradually heated, in an active open-loop solar system, the hotter water in manifold will be pumped to hot water storage tank, and the same time circulate colder tank water to manifold collector for solar heating.

The split pressurized solar water heater composes of heat pipe solar collector, storage water tank, workstation system, accessories and interconnecting pieces.

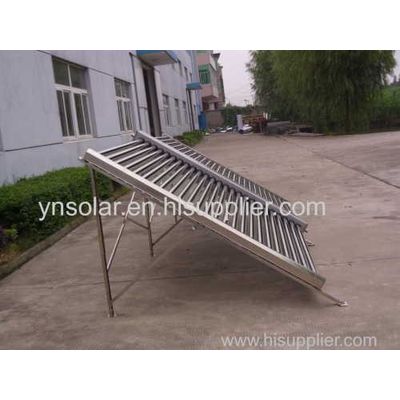

Stainless Steel Vacuum Tube Solar Collector(One-wing Type)  consists of glass vacuum tube, non-pressurized manifold and supporting bracket, working principle is thermosyphon the same as integrated non-pressurized system, water is heated directly in glass tubes, taking advantage of the natural circulation due to smaller density in hot water than cold water. series or/and parallel arrays of solar collector is usually adopted for large-scale hot water heating project.

The heat pipe solar collector consists of heat pipe glass vacuum tube, pressurized manifold, supporting bracket and other related accessories.

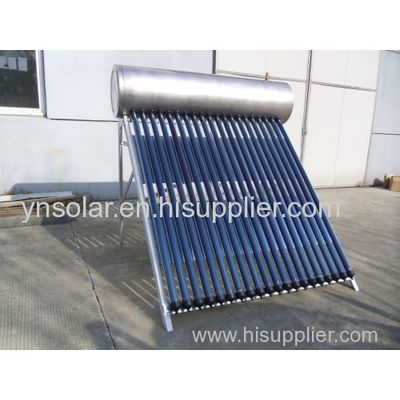

Stainless Steel SUS304 Compact Pressure Heat Pipe Solar Water Heater working principle: The solar heater tank has no exhaust hole, therefore, it must bear the pressure came from tap water and hot water, when use, the hot water comes out because of water pressure. Vacuum tube absorbs solar energy, and conductive copper pipe transfers the heat into the pressurized solar water heater tank. In this case, the water inside the tank becomes hot. No water in the heat pipe makes the whole system could bear pressure

Copper heat pipe tube and inner medium for thermal transmission, with a quick startup and super efficiency. No water flows into vacuum tubes, system works well with withdrawal of one or several heat pipe vacuum tubes. Super efficiency of insulation with polyurethane foam; No vent with less heat loss as compared to nonpressurized type. System withstands pressure more than 6 Bar, can be connected directly with tap water, more safe system and comfortable hot water use. System can be equipped with auxiliary electric booster and intelligent controller for solar heating assistance and automatically system control. Simple structure, easy for assembly and installation on different structure. Can be used all year round even works well in extremely cold climate. Long lifespan, can be of good service more than 30 years.

Compact Pressure Solar Water Heater working principle: The solar heater tank has no exhaust hole, therefore, it must bear the pressure came from tap water and hot water,when use, the hot water comes out because of water pressure. Vacuum tube absorbs solar energy, and conductive copper pipe transfers the heat into the pressurized solar water heater tank. In this case, the water inside the tank becomes hot. No water in the heat pipe makes the whole system could bear pressure.
