Yinuo - Non Pressure Vacuum Tube Solar Collector (One-Wing Type)

SHARE

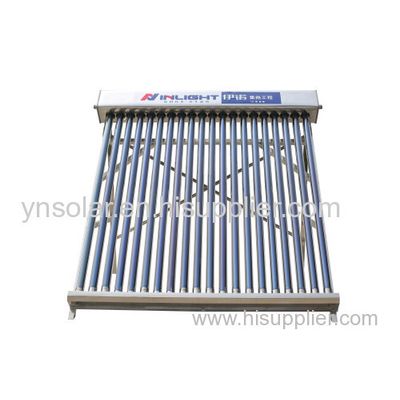

Stainless Steel Vacuum Tube Solar Collector(One-wing Type)  consists of glass vacuum tube, non-pressurized manifold and supporting bracket, working principle is thermosyphon the same as integrated non-pressurized system, water is heated directly in glass tubes, taking advantage of the natural circulation due to smaller density in hot water than cold water. series or/and parallel arrays of solar collector is usually adopted for large-scale hot water heating project.

Most popular related searches
tube solar collector
solar collector
solar thermal project
domestic hot water
vacuum-tube collector
vacuum solar collector
solar thermal
solar collector tube
solar project
non-pressure solar collector
  • Min. Order: 1 Set/Sets
  • Trade Term: FOB,CIF,DDP,EXW
  • Payment Terms: T/T, WU
  • Place of Origin: Zhejiang, China (Mainland)
  • Means of Transport: Ocean, Air
  • Production Capacity: 4500 units per month
  • Packing: FCL (full container...

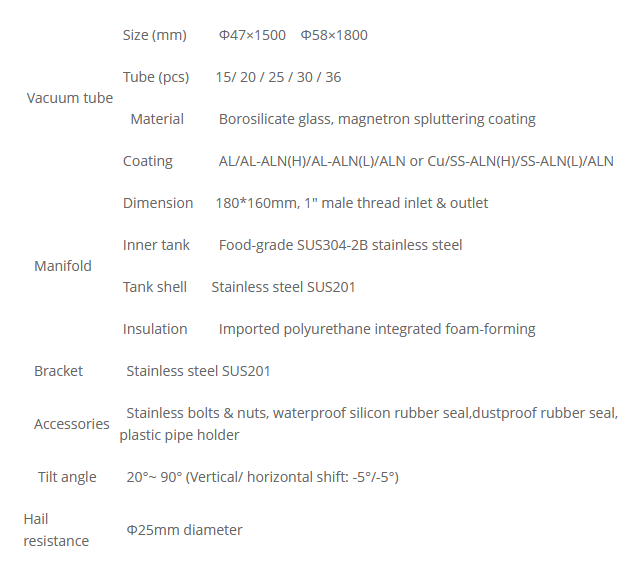

Product Attribute

  • Delivery Date: 10-15days after...
  • Type: Non-Pressure
  • Pipe Material: Glass
  • Application: Domestic hot water for shower, washing. Solar Thermal, Project: such as School, Hospital, Hotel.
  • Brand Name: INLIGHT/OEM
  • Outer Manifold: Stainless steel SUS201
  • Bracket Material: Stainless steel SUS201
  • Domestic hot water for shower, washing. Solar Thermal, Project: such as School, Hospital, Hotel.
  • Scope of delivery
  • Evacuated tubes based on the thermos flask principle,
  • manifold.

Installation types

  • Pitched roof, flat roof
  • Long operating life time but low in maintenance costs and repair requirements.
  • Quick and easy installation.
  • Short amortization rate.
  • Customized product solutions.
  • High energy yield and low heat loss due to the high vacuum of the evacuated tubes and PU insulation HFC245-FA.*
  • High-quality stainless steel in the inner tank to continuously maintain a good water quality.
