Heatex AB products

Model E is a high-performing and lightweight rotary heat exchanger designed for air handling units, primarily for comfort ventilation applications. Typical temperature efficiencies are up to 90%. Model E offers one of the most compact galvanized steel casings available on the market. This gives an exceptional efficiency compared to conventional rotary exchangers with the same casing dimensions. Model E’s performance is certified according to Eurovent, AHRI, and TüvSüd. Model E also meets several hygiene requirements. Only the wheel, without casing, is called Model O.

Model O is a high-performing lightweight thermal wheel designed for air handling units, primarily for comfort ventilation applications. Typical temperature ef?ciencies are up to 90%. Model O is ideal for installation in new air handling units or retrofitting in older units. The wheel is available for both vertical and horizontal assembly. Model O is certified according to Eurovent and AHRI. Model O is also available with a casing it is then called Model E.

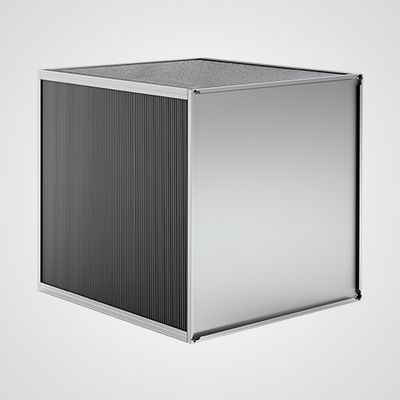

Model H2 is our most efficient cross flow plate heat exchanger. It combines low-weight with high differential pressure resistance and is able to reach typical dry temperature efficiencies above 80%. The efficiency is improved by its slim profiles and our latest patented plate design, creating high turbulence even at lower velocities while keeping pressure drop low. Model H2’s performance is certified according to Eurovent, AHRI and TüvSüd. It can be configured to comply with Ecodesign 1253/2014 requirements. All Heatex cross flow plate heat exchangers meet several hygiene requirements.

Model H is Heatex’ original cross flow plate heat exchanger with typical dry temperature efficiency up to 65% for a single pass and 85% for two-step arrangements. Model H offers the widest set of options and configurations among our cross flow plate heat exchangers. Model H’s performance is certified according to Eurovent, AHRI and TüvSüd. It can be configured to comply with Ecodesign 1253/2014 requirements. All Heatex cross flow plate heat exchangers meet several hygiene requirements.

Model M is a high-efficiency counterflow plate heat exchanger, specially designed for the demanding requirements of the telecommunications and electrical enclosure industry. Even in a dry situation, it can come close to 90% (sensible) efficiency. Especially for Model M, Heatex offers custom integration solutions for easy installation and faster end product delivery and may be built according to customers request with either double L-flow, double U-flow or L+U-flow configuration.
