Ing.Gallarati products

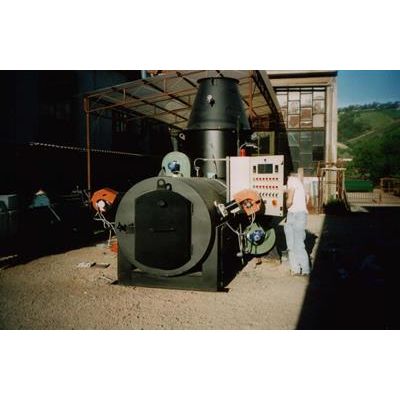

These are pyrolitic static incinerators (furnaces), with static incineration chamber and separated post combustion chamber (P.B.), which can be mounted either vertically (PSV type, mounted on the furnace itself) or horizontally (PSO - mounted in line with the furnace).

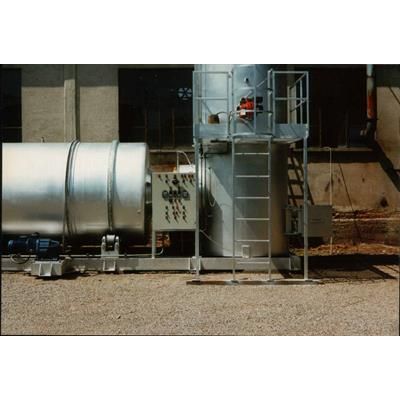

These are small and medium size horizontal rotating pyrolitic incinerators (furnaces) with either manual loading ("batch") through the frontal door or automatic loading by means of a ram loader (hydraulic loading machine), which can be mounted only on the bigger units (starting from the model MAC300, due to the head diameter).

Design and supply of industrial furnaces of many types; we can supply studies and consultancies:

These are static cilyndrical furnaces suited to pyrolize waste with high caloric content into poor gas containing hydrogen (hydrogen gas), which, after being submitted to the cleaning process, can be utilized directly into "OTTO" cycle motors , specially designed for hydrogen gases, to produce electric energy from renewable sources according to the italian D.M. "Bersani" nr.79/99 (green bonds); further with addition of a gas-reforming phase, converting CO into CO2 at 500°C, it is possible to improve the system and to extract from the pyrolisis gas pure hydrogen and pure carbon dioxide fractions, by means of an ultra filtration section; in this case the produced hydrogen can be gathered as it is to "fuel cells" in order to produce green electric energy with high efficiency grade (>50%).

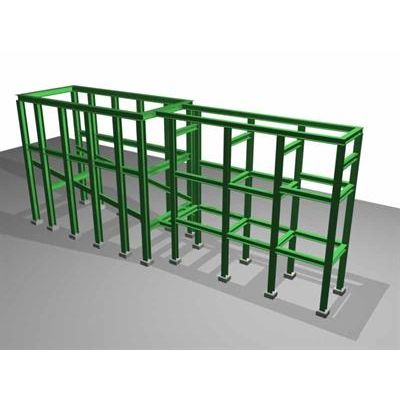

We design and produce bearing steel structures made of carbon steel as well stainless steel, calculated either in compliance with the Italian technical norms or with the European norms (Eurocodes), with certified welding systems at norms UNI-EN 287-1; the steel structures can be either only designed (supply of dwg`s and calculations only) or supplied complete "turn key", after preassembling in our support workshop located in Cigognola (Pavia - Italy),and  loaded on trucks.
