If the pressure is on; we keep it cool. With the new CBF/CSF range in the lineup you are well prepared for operating pressures up to 90 bar. The CBF is the blow through version as the CSF is the draw-through variant. All coils are optimized for natural refrigerants like R744 (CO2) and R290 (Propane) and make it a perfect choice for cooling and freezing applications.

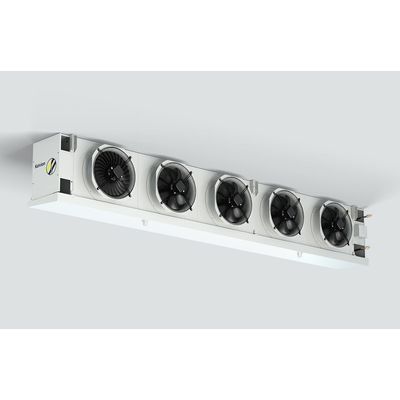

Both versions can be used for temperatures ranging from -40°C to +40°C and are suitable for synthetic and natural refrigerants. The CDK model has a capacity range from 7.33kw up to 145.3kw (SC2), while the CDL version, with stainless steel tubes, offers a range from 8.9kw to 154kw. The fans are mounted to the outside of the cooler and operate at the optimal speed required for large production and working areas. They come as standard, not wired to a junction box. However wiring is available at an additional cost, if required. A comprehensive range of variants and accessories allow for a high level of customization. Thanks to standard hinged end covers and optional hinged drip trays and  fans the air cooler is quick and easy to clean.The suspension brackets for the range are designed to allow the air cooler to be mounted either flush to the ceiling  or with a 20mm clearance for deep freeze areas.
