KMB Systems, s.r.o. products

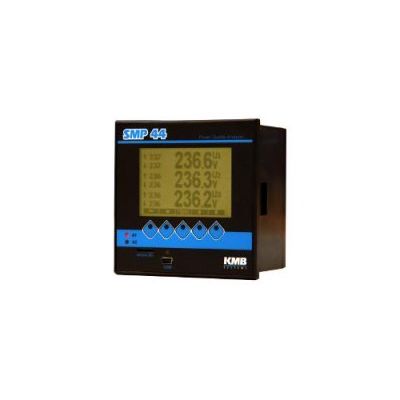

Power-voltage quality analyser for panel - combines accurate 3-phase energy 4Q, 3 tariff TOU meter - power measurement device - provides data logging, power quality analysis - advanced alarms and programmable input/output capabilities. Compact power quality analyser SMP and SMPQ are a class S power monitoring devices according to the IEC 61000-4-30, ed. 2. SMPQ also evaluates and archives power quality and distrubance data according to EN 50160 standard. An important part of this compact platform is an embedded four quadrant electricity meter with automated meter reading archive (load profiles). Functionally they are identical to SMV and SMVQ analysers, the only difference is the provided type of display.

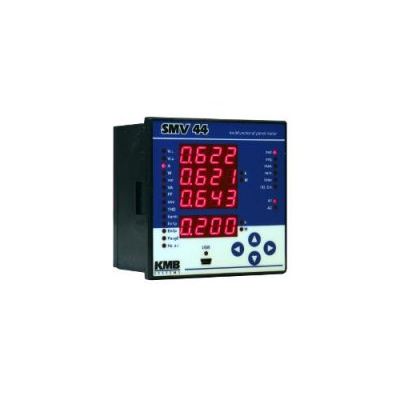

Universal compact power meters combine accurate 3-phase energy and power measurement with data logging, power quality analysis. Includes also advanced programmable alarms and general input/output capabilities. Compact universal PQ analyzers SMV and SMVQ are similar to the SMP resp. SMPQ instruments with the only difference being its bright segment LED display. Large internal memory allows continual measurement and datalogging of all important parameters for a relatively long time. An important part of this compact platform is an embedded four-quadrant electricity meter with automated meter reading archive. SMV and SMPQ meters are a class S power monitoring device according to the international standard IEC 61000-4-30 ed. 2. SMVQ additionally evaluates and archives all required power quality and distrubance data according to EN 50160 standard.

NOVAR 1005 and NOVAR 1007 power factor controllers are enhanced successors of very popular compact NOVAR 5 controller. These new models are primarily intended for smaller and less demanding applications with budgetary constraints. Nevertheless most of functions and features are similar to the NOVAR 1114 type.

NOVAR 2618 (and NOVAR 2607, 2609, 2616) represents a professional model of the innovated�APFC line NOVAR�with three data logging options. It is based on the innovated hardware platform with improved, precise and continuous evaluation and control of all required parameters in a complete three phase system. It is fully automatic and it has a simple installation. It offers up to 18 relay outputs to control combinations of single-, two and three-phase compensation steps of both the compensation capacitors and decompensation reactors.

Compact type of automatic power factor controller with DIN rail mountable enclosure. NOVAR 1005D and NOVAR 1007D power factor controllers have identical features to the NOVAR 1005 and 1007 controllers. NOVAR 100x line is intended mostly for small simpler compensation systems with cost limitations. Both types are fully automatic and simple to use out-of-the-box. Many advanced priciples are inherited from the superion NOVAR 11/12xx line such as: simple automatic step and connection detection, gear life-time improving step selection algorithm, step failure alarms, configurable temperature (cooler/heater) control etc.

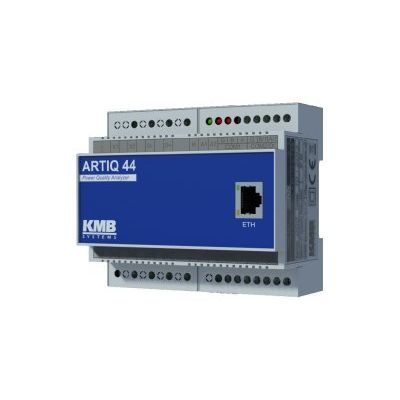

ARTIQ 144 is a compact advanced power quality monitor for industry, smart buildings, smart grids and for continuous remote distribution network monitoring. It is also a precise power analyzer with data logger and it has embedded energy meter. ARTIQ measures unbalance, frequency, total harmonic distortion and up to 128 individual RMS values and phase angles of harmonics and interharmonics etc. It also records Plt and Pst flicker severity indices, voltage events, transients, detailed precise load profiles etc. Multiple options are provided to keep the internal time precisely synchronized.

SMY 133 advanced 3-phase multimeter with large color LCD display. Instrument is designed for load or generation monitoring in single-phase and three-phase low, medium and high voltage networks. It monitors actual value of frequency, line and phase voltages, currents, unbalances, active and reactive powers, power factors and up to 50 voltage and current harmonics as well as the total harmonic distortions. Measurement of actual temperature within a control panel is also supported with an in-built temperature sensor.

Portable power quality analyser - 4 voltage inputs and 4-32 current inputs - nominal current rate can be selected in range 10-10 000A. NEMO 332 is a portable multifunctional power meter and power analyser with datalogger functions. It is suitable for low, medium and high voltage networks (measured via voltage transformer). Its large internal memory can store months of typical measurements and also records disturbance data, log, electricity meter reading and other critically important information. It shares many features with its panel counter part SMPQ.

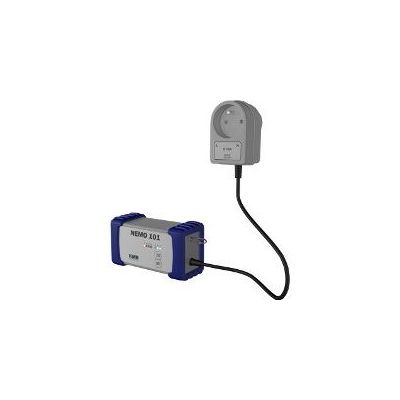

Portable power quality analyser - 2 voltages (L-N, PE-N) input and 2 current inputs - nominal current rate can 16A. NEMO 101 is a portable multifunctional power meter and power analyser with datalogger function. It is suitable for comfortable measurement of low voltage instruments directly in the outlet. The combined voltage/current probe is embedded in the plug and can measure up to 16 A current on phase and neutral wire.

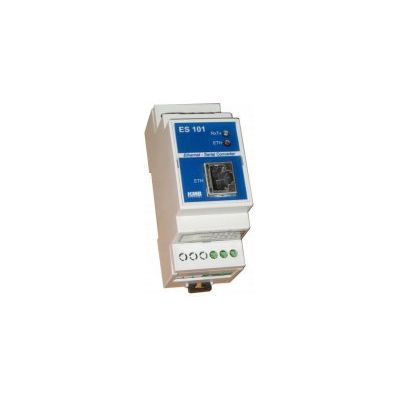

Ethernet to Serial Line Converter for all our measuring instruments, analysers and power factor controllers. Supports ENVIS software. ES 101 is a general purpose Ethernet-to-Serial converter. It allows different instrument(s) with a serial line to be connected directly and transparently to the Ethernet. The communication with such instruments is performed using the default TCP/IP sockets. It can by configured and parametrized over the network with the ENVIS.Daq software (for Windows operating systems). In the case of data acquisition from KMB instruments, the ENVIS software supports ES 101 converters directly within.
