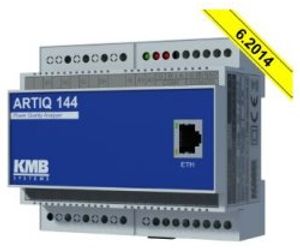

Model ARTIQ 144 - Advanced Compact Power Quality Monitor
From Others
ARTIQ 144 is a compact advanced power quality monitor for industry, smart buildings, smart grids and for continuous remote distribution network monitoring. It is also a precise power analyzer with data logger and it has embedded energy meter. ARTIQ measures unbalance, frequency, total harmonic distortion and up to 128 individual RMS values and phase angles of harmonics and interharmonics etc. It also records Plt and Pst flicker severity indices, voltage events, transients, detailed precise load profiles etc. Multiple options are provided to keep the internal time precisely synchronized.
Always included is one RS-485 serial communication...
Always included is one RS-485 serial communication line. Each instrument can be equipped with a wide range of optional interfaces including Ethernet and wireless ports or additional inputs & outputs. ENVIS application provides configuation and data management from a remote PC. In combination with ENVIS. Online service its actual values can be periodically archived to the SQL database for further processing and data analysis. Standards: Class A EN 61000-4-30 ed. 3 and reports EN 50160 ed3, class 1 EN 61000-4-7 ed. 2, class 1 EN 61000-4-15, IEC EN 61557-12 voltage 0.05 and active energy 0.2,
Typical applications: measurement of power quality and energy consumption at critical infrastructure points, advanced energy management systems, monitoring of distribution networks, precise industrial automation & energy management.
Key Features:
- four independent voltage and current inputs (4x1p, 3p-wye, 3p-delta)
- direct and indirect voltage measurement
- includes through-hole (up to 300A) or split-core/clamp-on (up to 600A) current transformers
- electricity meter supports 3 tariffs, single- and three-phase measurement in four or six quadrants
- basic measurement interval 10/12 periods, 256 samples/period
- standard embedded RS-485 interface, optionally Ethernet, WiFi, USB or ZigBee
- Supported Firmware Modules: ModBus Master, General Oscillograms, Ripple Control Signals
