Measurlogic, Inc. products

Features: Measures and displays DC Voltage,Current, Power & Energy. Voltage range selectable: 100Vdc, 300Vdc or 800Vdc (1000Vdc - on request). Current measurement uses 60mV shunt. Front panel mounting. Large LED 5 digit display. Setup configuration via secure, front panel keys. Min and Max values. Relay outputs (optional). Analog output (optional). Modbus RTU communications RS232 or RS-485 (optional). Compatible with PowerStudio Energy Management Software.

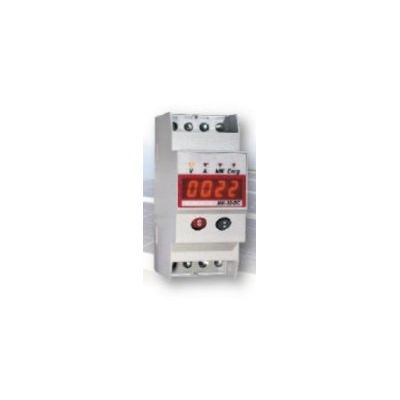

Up to 800 V dc. Completely programmable. 4 digit, high intensity LED display. Displays Voltage, Current, Power and Energy. Programmable digital output (opto-coupler). Class 1 accuracy for Energy. Ideal for new and existing installations 2 models. Direct Connection up to 30A.
Connection via 60mV shunt
