Measurlogic, Inc. products

The DTS 307 MCM Series of multi-circuit monitors has been designed to provide a single metering solution for 9, 12, 18 or 24 branch circuits (3, 4, 6 or 8 Three phase circuits).

One of the most versatile and accurate meters on the market. The DTS 310 has a very compact DIN rail design, requires no external power source to operate, and comes with color coded, pluggable connectivity. This meter is certified to ANSI C12.20 Class 0.2 (Revenue Grade) providing the most accurate data acquisition available. It can function in either a single, split or three phase environment and is equipped with auto-topology detection. The DTS 310 works with all “safe” 333mV, 5A or flexible Rogowski current transformers (CTs) and comes with CT Reverse Algorithms for automatic correction of improper field mounted CTs.

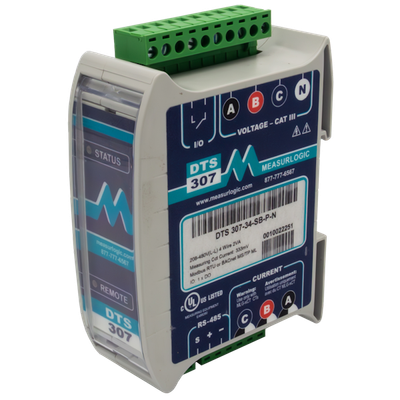

Designed as an OEM solution, the DTS 307 is unique in that it has one of the smallest foot-prints of any submeter on the market, with dimensions of 3.11”(79mm) D x 4.25”(108mm) H x 1.38”(35mm) W.  Along with a ultra-compact DIN rail design, the DTS 307 requires no external power source to operate and comes with color coded, pluggable connectivity. This meter can function in either a single, split or three phase environment and is equipped with auto-topology detection. It is certified to ANSI C12.20 Class 0.2 (Revenue Grade) providing the most accurate data acquisition available.

The DTS SMX is a weather-proof energy sub-meter that operates in any environment. It is easy to install and is designed to mount on any surface; providing the most accurate data acquisition. This meter works with all “safe” 333mV, 5A or flexible Rogowski current transformers (CTs) and requires no external power source to operate. A backlit LCD display provides local visibility to the measured parameters.

The DTS 305 digital 3 phase power meter and power transducer provides you with unprecedented functionality, flexibility and performance in electrical measurement and control. This powerful meter is an extremely compact, easy to configure, simple to install IED (Intelligent Electronic Device). With the DTS 305, you only pay for the power meter usage hardware, software and functionality which you require, making this one of the most cost-effective products of its kind available on the market today.

Use the DTS SKTD Class 0.5 “Smart” submeters to replace existing electro-mechanical energy consumption metering for improved efficiency, reliability and power quality. These replacement socket submeters support most accepted protocols, including embedded ethernet connectivity for Modbus/TCP, BACnet/IP, SNMP or DNP 3.0 as well as communication via an RS-485 connection, supporting Modbus RTU and BACnet MS/TP. They easily integrate with Building Automation Systems and Energy Monitoring Software.

CVM-A1500 is a panel mounted power quality analyzer with EMS (Energy Management Software) integrated. Its internal Web Server (html5) allows any user to have full installation control by using any web browser.

The CVM-B100 and CVM-B150 units are panel mounted three-phase power analyzers (dimensions: 3.77″ x 3.77″ and 5.66″ x 5.66″, respectively). Both offer 4-quadrant measurement (consumption and generation). Suitable for Medium or Low voltage installations, in both 3 or 4-wire three-phase circuits, two-phase circuits with or without neutral, single-phase circuits or ARON connections.

The CVM-C10 is a revenue grade power analyzer for panel mounting with a compact energy log and four-quadrant measurement (consumption and generation). Suitable for medium- and low voltage installations in three-phase circuits with three or four wires, two-phase circuits with or without neutral, ARON connections or single-phase systems.

The CVM-C10 is a revenue grade power analyzer for panel mounting with a compact energy log and four-quadrant measurement (consumption and generation). Suitable for medium- and low voltage installations in three-phase circuits with three or four wires, two-phase circuits with or without neutral, ARON connections or single-phase systems.
