The PLS LED Strobe Rechargeable Lithium-ion Battery Pack is a critical accessory designed for use with PLS pocket stroboscopes manufactured by Monarch Instrument. This rechargeable battery pack ensures the handheld strobe units remain operational, providing consistent power essential for precision measurements and diagnostics in various industrial applications. The compatibility and robust design make it suitable for environments where reliable and sustainable power sources are required. This battery pack, marked by the part number 6280-074, underscores Monarch Instrument`s commitment to high-quality support products that meet technical standards. It is imperative for technicians who frequently engage in maintenance, monitoring, and testing processes in dynamic settings where power stability is pivotal.

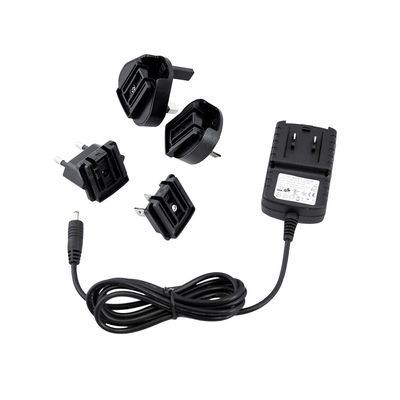

The PLS Pocket LED Strobe from Monarch Instrument is adaptable and high-performing, offering effective stroboscopic functionality suitable for various industrial applications. It accommodates an interchangeable wall adapter with plugs for the USA, UK, AUS, and Euro regions, enhancing its versatility for global usage. Complementing this device is the LBC-U Recharger, a smart universal lithium-ion battery charger that operates on 115/230 Vac, ensuring efficient charging for continued performance. It is compatible with the PLS Pocket LED Strobe, which is beneficial for tasks requiring precise and stable illumination. With its compact and portable design, the strobe facilitates easy handling and operation in constrained or remote environments. The product’s inclusion of advanced technical specifications ensures it meets the rigorous demands of professional tasks, making it a trustworthy tool in measurements and diagnostics.

The ACT-1B Panel Tachometer is compatible with all Monarch speed sensors with tinned wire "-W" connections. It can be factory configured to meet your specifications or user-configured onsite with the optional USB Programming Cable. The USB Programming Cable and free downloadable PM Remote Software also allow real-time display and recording of data on a local PC. Optional NIST Traceable Certificate is available. For assistance in choosing power and output options, contact Monarch Instrument.

The ACT-3X Panel Tachometer is a powerful NIST calibrated, fully programmable tachometer and totalizer. It accepts inputs from all Monarch speed sensors or from any standard TTL generating device. The unit operates from 120/240 V ac input power or from 12 or 24 V dc input power (optional). Programming is easily performed through the 5 front panel pushbuttons or using the free downloadable PM Remote Software. Set up for single-channel monitoring. Programmable scale factor with menu selection for multiple pulses per revolution, linear rates, single event trip speeds (using auxiliary input), and rate of change in RPM. A TTL pulse repeater output is standard. Recommended sensors with PN -W (= tinned leads), ROS-W, ROS-HT-W-25, P5-11, PS-12, M-190W, IRS-W, ROLS-W, RLS-W, SLS-115/230, CSLS, and GE-200HP Gas Engine Sensor (with amplifier).

The F2A3X Frequency to Analog Converter is a DIN rail module that converts a frequency input signal into a proportional analog voltage (0-5 V dc) or current (4-20 mA) output. The output signal is electrically isolated from the input signal and input power source, effectively eliminating troublesome ground loops. The input signal can be supplied from a Monarch sensor (measuring RPM for example) or any source of digital signal not exceeding 12 volts. The F2A3X is completely user-programmable using the free downloadable PM Remote Software. A NIST Traceable Certificate is included.

The F2A1X Frequency to Analog Module converts a frequency input signal into a proportional analog voltage (0-5 Vdc) or current (4-20 mA) output. The output signal is electrically isolated from the input signal and input power source, effectively eliminating troublesome ground loops. The input signal can be supplied from a Monarch sensor (measuring RPM for example) or any source of digital signal not exceeding 12 volts. The F2A1X is factory pre-programmed with the full-scale output and input scale factor of your choice. These settings are also user-configurable with the optional USB Programming Cable and downloadable PM Remote Software. The PM Remote Software also displays data in real-time and allows data to be recorded to your PC in .csv format. The F2A1X requires 12-24 Vdc input power.

The unique SPSR (Self-Powered Sensor) with internal rechargeable batteries provides the required power to any one of (4) Monarch Sensors (see below). The TTL compatible output is switch selectable as either positive going 0-5 V pulses or negative going 5-0 V pulses provided on a BNC connector. The internal rechargeable batteries provide 40 hours of operation between charges. For continuous operation, the SPSR can be powered by 115/230 V ac. Self-powered sensors are a critical element for providing one pulse per revolution for vibration analyzers, spectrum analyzers, stroboscopes, data acquisition equipment, tachometers, balancers, waveform analyzers, and magnetic tape recorders.

The DataChart DC1250 is a feature-rich data acquisition system offering 2 universally configurable inputs for measuring DC voltage, DC current, thermocouples, and RTDs as well as frequency and pulse inputs. Four (4) internal alarm setpoints, 2 alarm relay outputs, and 1 digital control input are standard. A maximum storage rate of 100 samples per second can be set for both channels allowing for the capture of short duration process signal anomalies.

The Track-It™ DC Voltage and Current Data Logger is a two-channel battery-powered standalone compact data logger that records up to 32,000 samples each of dc voltage or current data. Units are available in four DC voltage ranges and one for dc current. Available with NIST Traceable Certificate

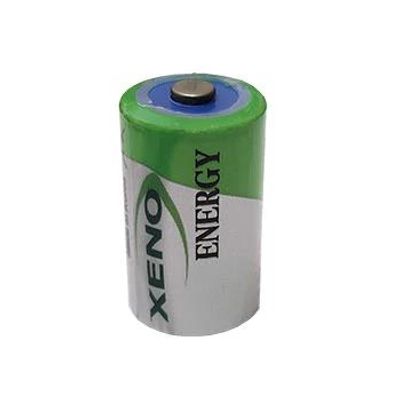

Replacement lithium battery 1/2 AA 1.2Ah, suited for all models of Track-It™ Pressure/Temperature and Vacuum/Temperature Loggers.
