nVent HOFFMAN Management Company products

A continuous hinge combined with stainless steel clamps on three sides provide environmental protection and security in indoor or outdoor applications.

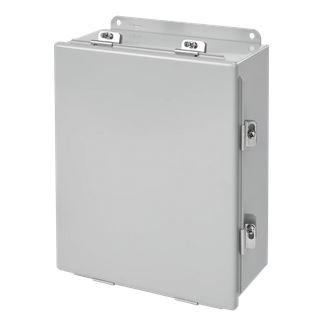

This easy-to-open, continuous hinge enclosure features screw-down clamps for secure closure and can be used in a wide variety of applications.

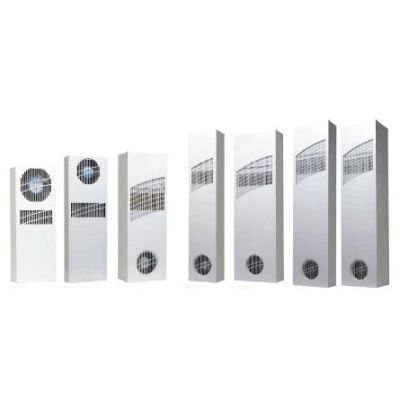

Unique counterflow aluminum core for high-efficiency and high-performance heat transfer, except for the XR20 and XR29-08 which use a modified heat pipe core. Models for 115 and 230 VAC power input. UL Listed or Recognized to save customers time and money with agency approvals. Operating temperature range from -20 F/-29 C to 140 F/60 C. Streamlined aesthetics with no visible mounting rails; Slim design allows for mounting to narrow or shallow enclosures. Reliable top-quality bearing fans and impellers make these units run quietly and with increased reliability. Low-carbon mild-steel sheet-metal cover for rugged factory environments. Easy-mount flanges for simple installation. Mounting hardware, gaskets and user manual furnished with the unit. Every unit functionally tested before shipping. Filterless design for low maintenance and easy cleaning. Four fasteners allow simple removal of front cover for easy access.

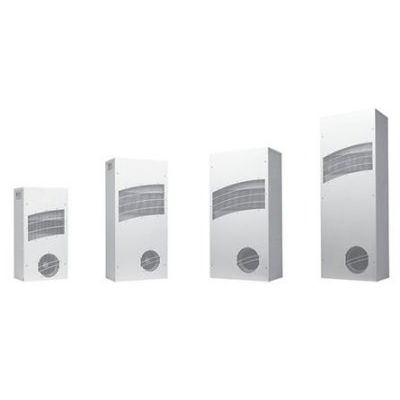

Unique counterflow aluminum core for high efficiency and high performance heat transfer. Models for 24 VDC, 48 VDC, 115 VAC and 230 VAC power supplies. UL Listed or Recognized to save customers time and money with agency approvals. Operating temperature range from -40 F/-40 C to 149 F/65 C. Variable speed blowers standard on DC powered units for quiet running. Surface or recessed mount capable. Low-carbon mild-steel sheet-metal cover for rugged factory environments. Easy-mount flanges for simple installation. Mounting hardware, gaskets and user manual furnished with the unit. Every unit functionally tested before shipping. Filterless design for low maintenance and easy cleaning. Engineered for temperature extremes, corrosive environments and wind driven rain.

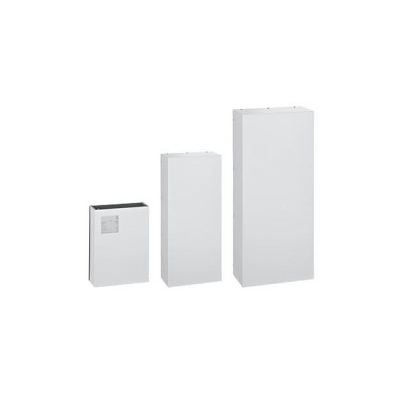

Capacities ranging from 870 watts to 6700 watts. Filterless design. NEMA power cord connection standard. Copper pipe and aluminum fins heat exchanger core. Air movers with thermal protection. Regulating mechanical thermostat set at 35 C (95 F), differential of 4 C (7 F). Operating temperature from 10-50 C (50-122 F). Solenoid water valve. UL Listed to save customers time and money with agency approvals. Recovery of condensation system and condensation discharge pipe. Requires an available cooled water source.

Model RF-4 combiner box that can handle four strings. The box combines and fuses four positive inputs and combines four negative inputs to a single positive output and negative output.

Model RF-6 combiner box that can handle six strings. The box combines and fuses six positive inputs and combines six negative inputs to a single positive output and negative output.

The Vynckier Series CDF disconnect combiner boxes provide unparalleled protection against the elements in a NEMA 4X enclosure. Utilizing only the highest quality components in a proven Vynckier ARIA enclosure, Soltection combiners enable the fastest installation by providing ample working space and a straightforward, simple layout that is easy for installers.
