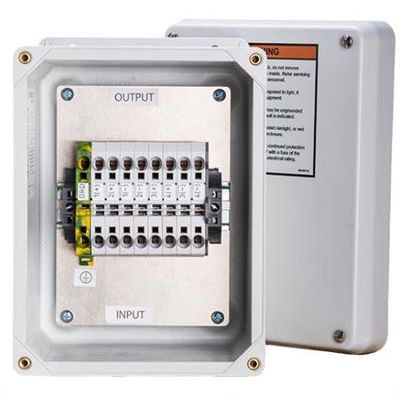

Soltection - Model RU-2 -Residential Transition Box
Model RU-2 transition box provides a quick, simple, and easy transition point for string inverters and optimizers. Using only a single flathead screwdriver, connections can be securely made in the box, eliminating the need for wire nuts and crimp connectors. Included jumpers enable combinations of 2 strings to be made, eliminating the need for U-joints, Y-connectors, or connector boxes.
Most popular related searches
Electrical:
- Maximum Voltage: 600 V
- Maximum Current: 55 A (No Jumpers)
- Maximum Current: 27.5 A (While Using Jumpers)
- Minimum Wire Size (Input and Output): #20 AWG
- Maximum Wire Size (Input and Output): #6 AWG
- Max Operating Temperature: 50°C
- Connections: (9 Total) - 4 Positive, 4 Negative, Ground
- Jumpers: 4 Included
Enclosure:
- Material: Fiberglass Reinforced Polyester (FRP)
- Outer Dimensions (H x W x D): 9.32” x 7.32” x 4.9”
- Inner Dimensions (H x W x D): 8” x 6” x 4.6”
- Environmental Rating: NEMA 4X
- Weight: 4.17 lb
