Obsta products

Mounting: 2 x 3/4" NPT threaded holes for conduit mounting and cable entry (One plug is provided as standard on the side. The cable gland is not supplied with the beacon but with the accessory, mounting bracket 113928).

The obstaflash system dual color L-865/L-864 or white only L-865 provides a day and night marking solution for all kind of obstacle higher than 61 meters as per FAA. For obstacle below 213 meters the use of white or dual color flashing lights L-865/L-864 during day and twilight time eliminate the need to paint the obstacle with red and white stripes.

Dual color medium intensity FAA L-865/L-864 including 3 OBSTAFLASH120 flashheads. Comply with ICAO medium intensity dual color type A and B. As per FAA white flashing lights L-865 used for daytime and twilight marking are recommended for obstacle exceeding 61 meters high.

Flash-head with integrated power supply: 6 Obsta optics with cover in hard glass and aluminium base. Simple installation with no losing parts when opening the flash-head. Power supply inside the flash-head.

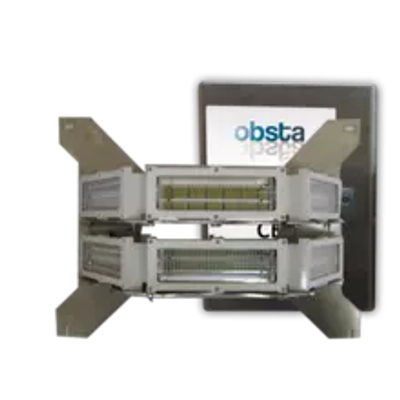

The led OBSTAFLASH high intensity is a white color flashing obstruction light. The OBSTAFLASH is compliant with ICAO high intensity type A during day/twilight/night mode.

Led high intensity type A (flash-head OFP-FH-RW-120-6P P/N 114601 + power supply OFP-CAB-1B-RW-240-8M16 code 114113) - Compliant with high intensity type A (ICAO annex 14 chapter 6) - This obstruction light could be also configured as a medium intensity type B or C during night time with IR.

The led OBSTAFLASH180 high intensity type B is a day & night white color flashing obstruction light dedicated to transmission lines when it is not possible to install markers on the high voltage cables. Led high intensity type B - Compliant with high intensity type B according to ICAO annex 14 chapter 6 (edition July 2018) - To be used on the support of the transmission line in case it is not possible to install day warning spheres on the cables (3 levels of 2 lights on opposite side of the tower supporting power cables).
