Projectile Tube Cleaning, Inc. products

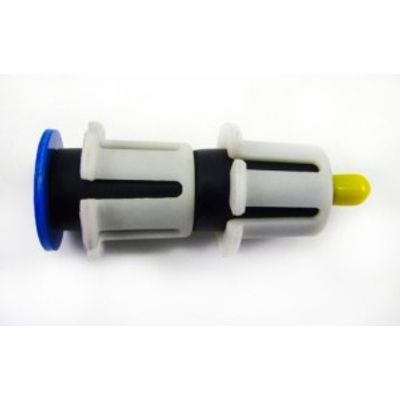

The patented Plastic Projectile Tube Cleaner from Projectile Tube Cleaning mirrors the design of their Metal Projectile Tube Cleaner but incorporates robust polymer blades. These blades are engineered for handling softer deposits often found in condensers and heat exchangers, such as mud, silt, and slime. This product is available for tube sizes ranging from 7/8” to 1” (22.225mm to 25.400mm) in outer diameter (O.D.). The design of this cleaner offers both high quality and competitive pricing compared to other plastic tube cleaners in the market.

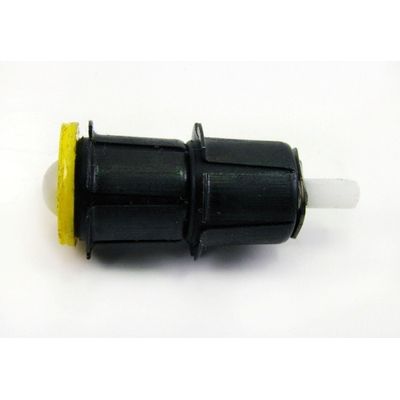

The patented U-Tube Projectile Tube Cleaner is a compact version of the Metal Projectile, engineered specifically for u-tube heat exchanger cleaning. Its miniature design allows it to navigate the tight radii commonly found in u-tube heat exchangers. The device features a central Delrin pin for enhanced flexibility, enabling it to bend around radiuses and ensure thorough cleaning of the entire tube, not just the straight sections. These U-Tube Projectiles are suitable for heat exchanger tube sizes ranging from 5/8” to 1” (15.875mm to 25.400mm) in outer diameter, with potential availability for larger diameters upon special request.

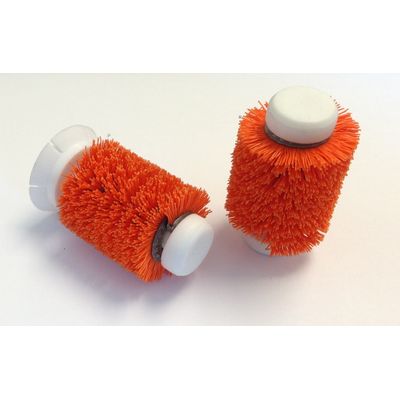

Projectile`s nylon brush tube cleaners are designed for effective maintenance of condenser and heat exchanger tubes. They are suitable for removing soft deposits such as mud, silt, and slime due to the numerous nylon filaments that ensure thorough cleaning. These brushes are also ideal for use with internally enhanced tubes where metal projectiles may not be suitable. The nylon brushes are available in both finned end and bi-directional styles, accommodating tube sizes with outer diameters ranging from 15.875mm to 31.750mm (5/8 inch to 1 1/4 inch). The product is engineered to meet industry standards at competitive prices, ensuring optimal performance and reliability.

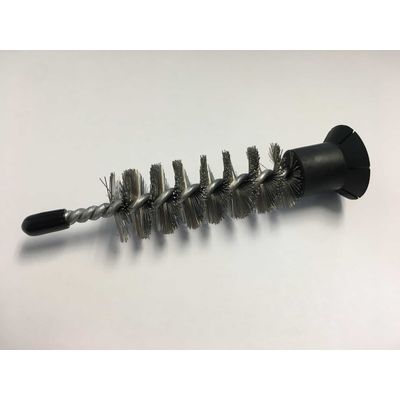

Projectile`s twisted wire stainless steel tube brushes are built for durability and superior cleaning efficiency. Compared to competitors, these brushes incorporate a higher density of steel wire filament, making them effective in removing soft to medium deposits such as mineral deposits, thick mud, and clay from condenser and heat exchanger tubes. The brushes are also adept at handling harder deposits in internally enhanced tubes where metal projectiles might be unsuitable. This brush features a rubber end piece for ease of use and better propulsion through the tubes. Available for tube sizes ranging from 19.050 mm to 31.750 mm in outer diameter (3/4” to 1 ¼”), these brushes can also be customized with carbon steel or brass filament to meet specific cleaning needs.

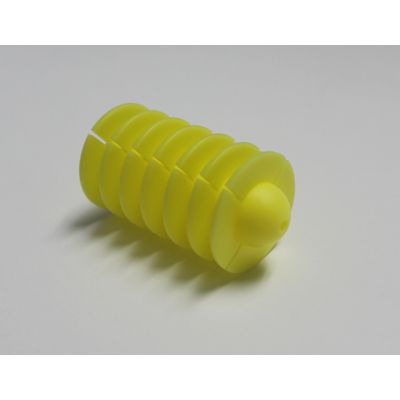

Our Plastic Tube Scrubbers are designed specifically for cleaning condenser and heat exchanger tubes that have minimal debris such as mud, silt, and microbiological fouling. This type of scrubber is the most economical option among tube cleaners, making it an ideal choice for budget-conscious heat exchanger cleaning operations. The scrubber features seven hard plastic fins that effectively scrape debris from the tube`s surface. Its hollow core allows water to pass through the center, flushing debris ahead of the cleaner. The outer diameter of the scrubber is engineered to match the specified inner diameter of the tube precisely. The Plastic Tube Scrubber can be propelled using either water alone or a mixture of air and water, providing versatility in various cleaning applications.

Our Plastic Tube Scrubbers are designed specifically for cleaning condenser and heat exchanger tubes that have minimal debris such as mud, silt, and microbiological fouling. This type of scrubber is the most economical option among tube cleaners, making it an ideal choice for budget-conscious heat exchanger cleaning operations. The scrubber features seven hard plastic fins that effectively scrape debris from the tube`s surface. Its hollow core allows water to pass through the center, flushing debris ahead of the cleaner. The outer diameter of the scrubber is engineered to match the specified inner diameter of the tube precisely. The Plastic Tube Scrubber can be propelled using either water alone or a mixture of air and water, providing versatility in various cleaning applications.

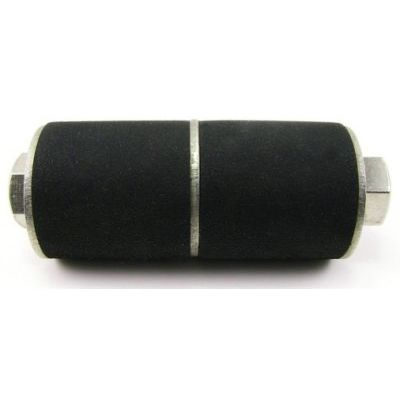

Projectile Tube Cleaning offers Permanent Metal Tube Plugs designed for high-temperature applications and for effectively isolating leaking tubes in condensers and heat exchangers. Their product lineup includes Pin and Collar Metal Tube Plugs, featuring a two-piece design with a tapered pin and matching collar that ensures a total seal. Also available are one-piece Tapered Metal Tube Plugs, which fit specific tube sizes as a permanent solution. Both plug types can be customized for specific tube sizes and are available in stainless steel, brass, and bronze. Special material requests are also accommodated. These tube plugs are essential for maintaining system integrity and preventing leaks.
