Schmid Energy Solutions products

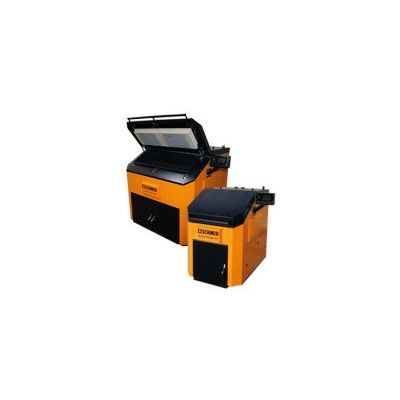

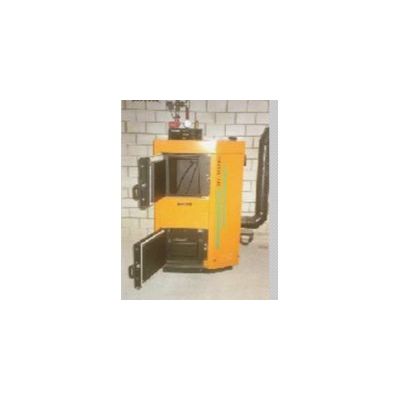

The Novatronic XV log combustion system is suitable for use in a single house or apartment block as well as large farmhouses. Fuel: Wood logs. Novatronic XV 35: Wood logs 1/2 m

The Novatronic XV log combustion system is suitable for use in a single house or apartment block and agricultural applications. Fuel: Wood logs. Novatronic XV 55: Wood logs 1/2 m.

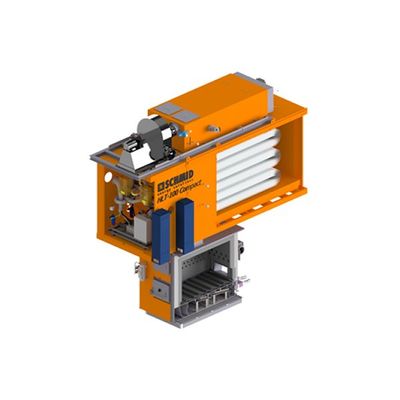

With the “HLT-100 compact” hot air turbine, electricity can be generated with a wood firing system from a thermal offtake of 300 kW. Due to their complexity and maintenance requirements, other systems – such as ORC systems or steam turbines – only become worthwhile as large-scale systems with a thermal capacity above 2 MW. In many cases, heat offtake all year round cannot be ensured for such high capacities. The hot air turbine therefore fills the gap in the smaller operating range.

Fuels with an extremely high calorific value or low ash melting point, such as particleboard waste, old timber, corn, rice husks.

The UTSR boiler unit is equipped with a flat feed grate and also suitable for fuel with a high ash content. The fuel is passed into the furnace from the rear of the furnace on the flat feed grate with high-alloy casting grate bars. The grate bars are designed that they overlap on both sides and the minimum fuel slips through the grate. Furthermore, the grate is designed to enable a clear, uniform distribution of the primary air supplied to the various zones, thereby creating a steady, undisturbed gasification zone. The grate carriage has a hydraulic drive, so that the movement intervals can be automatically adjusted to the capacity.

Clean boiler tubes are essential for the service life and efficiency of a system. All boiler tubes are cleaned with periodic compressed air pulses during operation.

Up to 900 kW nominal capacity and up to a maximum fuel moisture content of M 35, electrical industrial hot air blowers are available for igniting the fuel in the combustion tray or on the moving grate. From a nominal capacity of 900 kW and up to a maximum fuel moisture content of M 55, ignition burners run with propane gas can be used for the UTSR and UTSW combustion systems.
