Seraphin Test Measure products

The test measure is equipped with a high resolution 3 in. neck with reducer and is used with a mating vapor retention funnel. This equipment, when used together, is designed to minimize vapor loss dur- ing inspection by maintaining a saturated vapor space in the test measure.

Features: Designed to minimize vapor loss during inspection by maintaining a saturated vapor space in the test measure.

45 gallon cart calibration unit, with one (1) special j VRP/VEP 5 gallon stainless steel prover, and one (1) 45 gallon aluminum holding tank. The VRP/VEP  has a cap mounted on its neck that creates a seal around the dispenser nozzle as the prover is filled and drained also a vent line is fitted from the top of the prover to the product holding tank on which the prover is mounted. The neck is sealed with a flapper and boot to prevent evaporation and retain saturated air. During the drain-fill cycle. The volume standard, holding tank and vent line configuration is such that when the prover is drained, the air in the storage tank, which is saturated with gasoline vapor, is drawn through the vent line into the prover, thereby maintaining a saturated environment within the prover.

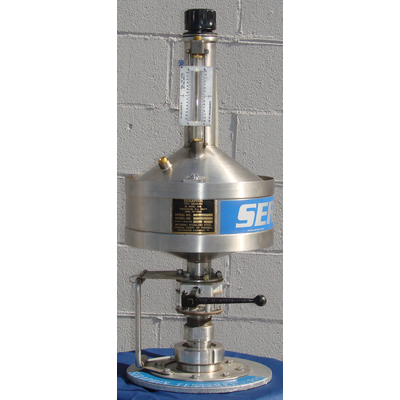

Stainless steel with bottom drain,with 2″ wet r dri valve. A 3″ diameter neck with .5 cubic inches increments. Complete with stainless steel ball joint and locking device. To be used as a direct replacement on seraphin equipment

Stainless steel with bottom drain,with 2″ wet r dri valve. A 3″ diameter neck with .5 cubic inches increments. No ball joint terminates to npt flange.
