Sonel S.A. products

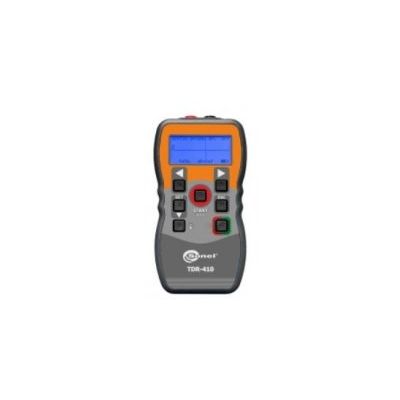

Location damaged power cables. Fault location copper telecom cables. Coaxial cable fault location. Fault location wiring infrastructure. Detection of breaks, short circuits, damage caused by dampness and other changes in impedance of the cable. Graphic depiction of damage the cable with automatic indication the distance to fault on the screen.

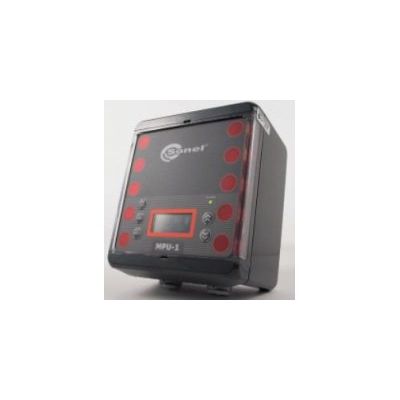

MPU-1 is dedicated to control (measure) leakage current in AC, low and medium voltage power networks. It is designed to make measurements, which results define network`s safety condition for leakage current. The device enables to set limit for maximum safe value of flowing leakage current and for values above this limit visual and sound alarm is activated.

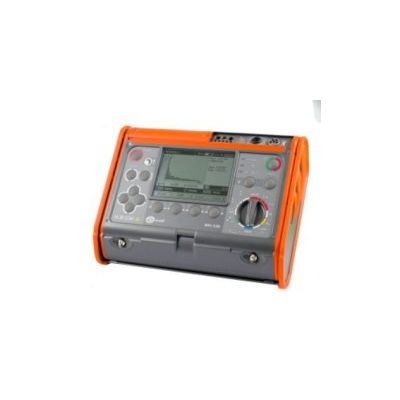

MPI-530 meter is a multi-functional instrument for electric shock protection measurements including the option of various methods for measuring earthing and earthing resistance. Additionally the meter enables its user to analyse power supply parameters, records and displays them on its screen. The instrument automatically measures the insulation resistance in a socket and in 3 -, 4 - and 5-wire cables when used with AutoISO-1000C adapter. Measurement results may be continuously verified, depending on user’s demand or according to binding regulations. Memory of the instrument may store tens of thousands of measurements allowing users to store them in a structure of a protocol and describe individual measurement points.

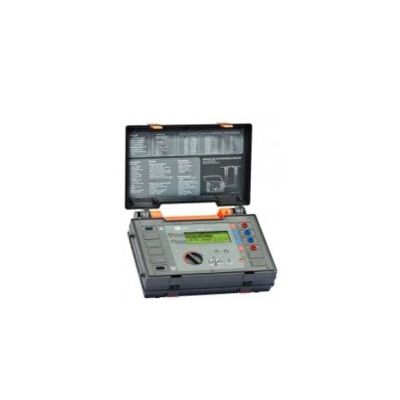

The MMR-630 Series meters are professional portable instruments for measuring very low resistances. Due to their special measurement algorithm they can be used for both resistive and inductive type of a specimen that makes. MMR-630 series perfect instruments for electricians testing electrical junctions, motors and power transformers windings. The results can be stored in the internal memory and send to a computer via serial interface. A quick PASS/FAIL test function with results displayed and acoustically indicated simplifies measurements considerably.

The multifunctional meter of electrical installation parameters Sonel MPI-540-PV is an advanced tool created in particular for measuring parameters of photovoltaic installations. With the use of one device, it is possible to carry out a whole range of tests on the DC and AC sides in accordance with the guidelines of the EN 62446 standard. In addition, the Sonel MPI-540-PV is also used to carry out all measurements to determine the safety condition of domestic as well as industrial electrical installations. The presented meter is a device with advanced capabilities, dedicated to specialists operating in the installation and electrical industry.

The Sonel MIC-15K1 insulation resistance meter has been designed to measure insulation resistance of electrical power engineering objects, including single and multi-core cables, transformers, motors and generators, condensers, circuit breakers and other power station equipment. It is especially recommended for measurements in areas with very high electromagnetic disturbances, e.g. at substations with a voltage of 1200 kV AC or 500 kV DC. Due to the measuring voltage of 15 kV (in accordance with the guidelines of ANSI/NETA ATS-2009 TABLE 100.1 standards) the meter can be used for objects with nominal voltage above 34.5 kV. The MIC-15k1 is an extremely modern, ergonomic device with intuitive operation. It will satisfy even the most demanding measuring engineers in the most difficult conditions, with large disturbances, where other meters will be useless.

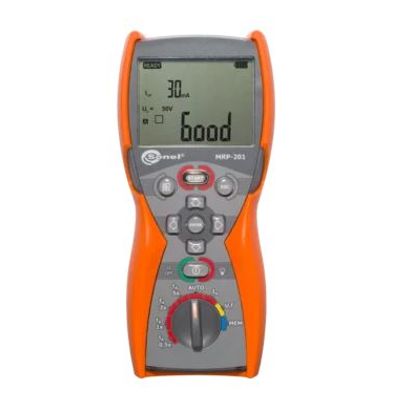

The Sonel MRP-201 residual current circuit breaker meter is a specialist device for measuring all types of residual current circuit breakers - direct, short-delay, selective; types AC, A and B. It allows to measure tripping current, tripping time depending on differential current, resistance of protective conductor and contact voltage. Measurements can be performed individually or in series in automatic modes (all preset measurements for a given waveform or for all waveforms); simultaneous measurement of current and tripping time is also possible (with one RCD trip).

Professional meter for photovoltaic installations up to 1500 V. A set of measuring instruments with accessories. The set includes: Sonel PVM-1530 photovoltaic meter, Sonel IRM-1 solar radiation and temperature meter - 2 pcs, Sonel CMP-1015-PV digital clamp meter for photovoltaic installations.
