Payload: 6,000 lbs.. Length Overall: 23 1/2` extended length with standard tongue. Brakes: Electric. Axle: Single 10,000 lbs. dual wheel. Stanchions: (4) Sliding. Tongue Jack: Crank-Type. Chock Block Holder & Chocks: Standard. Cat-track wiring: Inside tongue.

Payload: 10,000 lbs. GVWR: 14,000 lbs. Length Overall: 29` Extended, 22` Retracted. Width Overall: 96`. Brakes: Electric. Axle: Dual, 7,000 lbs. Tires: LT235/85 R 16. Tongue Jack: Crank-Type, 7,000 lbs. Towing Eye: 3` Adjustable. Lighting: Per FMVSS # 108. Paint Finish: Safety Yellow. Safety Chains: Standard. Chock Block Holder & Chocks: Standard. Solar Battery Box & Battery: Standard.

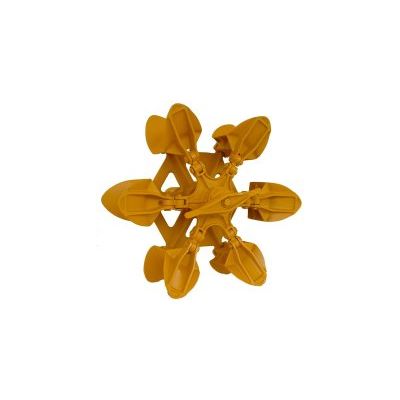

The CR collapsible reel is designed for picking up wire in neat coils. The reel is simply pushed onto the winch shaft, compressing the spring and then turned to lock onto the shaft. After the wire is coiled onto the reel, a quick-acting handle is used to collapse the outer rim of the pick-up reel, allowing the coiled wire to be removed. Maximum pulling force is 4,000 pounds. Capacity is 200 pounds of wire or cable.
