Van der Valk Solar Systems BV products

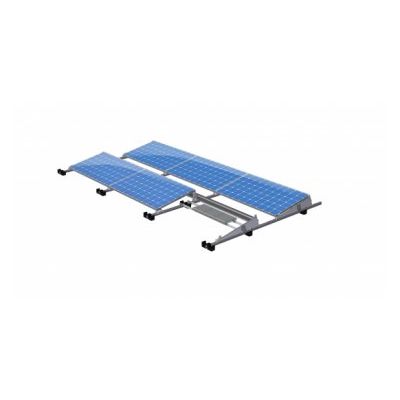

The ValkDouble solar ramp has a landscape configuration with 2 solar panels and is suitable for ‘special’ flat roofs such as extensions and lean-to roofs, garages and apartment buildings. All the materials used are of the highest quality. The system can also be installed quickly and easily.

The ValkDouble, ValkTriple and ValkQuattro are suitable for ‘special` flat roofs such as extensions and lean-to roofs, garages and apartment buildings. All the materials used are of the highest quality. The system can also be installed quickly and easily. The compact box with all the small material contains an easy-to-understand installation guide and a ballast table with wind region and building height variables. You can use the system to quickly calculate the right amount of ballast. Part of the ballast is included in the form of mass blocks. Depending on the requisite ballast, you should add extra ballast yourself. Attachment to the roof is also possible using consoles. These are available separately.

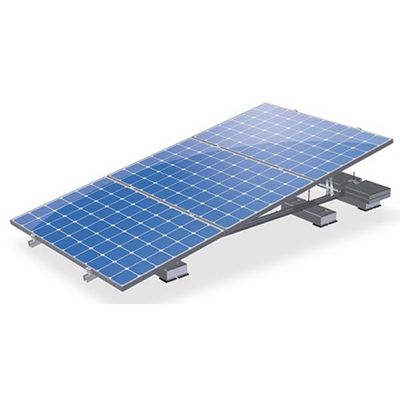

Foundation methods flat roof systems; The ValkPro+ L10 South or East-West and the ValkPro+ P10 South or East-West have different foundation methods. For example, the systems can be mounted using rubber tile carriers, mass blocks, or consoles.

The ValkPro+ L10 South or East-West and the ValkPro+ P10 South or East-West have different foundation methods. For example, the systems can be mounted using rubber tile carriers, mass blocks, or consoles. Rubber tile carriers are easy to transport and install due to their low weight and soft structure and they also protect the roof surface. The advantage of mass blocks is that they can immediately be used as a considerable part of the ballast. In addition, when mass blocks are used the height of the system is increased, which leads to easy mounting, for example, when applied as a field configuration. Consoles facilitate fixed mounting on the roof in areas with very high wind load or roofs that cannot bear any weight. This specific implementation guarantees water-proof sealing.

The ValkPitched – Clamp can be used for all types of roofs. Its innovative and strong clamping ensures a quick and reliable fixation. The Side++ profiles with adjustable, universal panel clamps are available in plain aluminium, semi-black and full black versions. They are especially strong and long enough to bridge large spans and are suitable for directly mounting extra wide, high-power panels. We offer various solutions for tiled roofs, depending on the type of tile and roof structure. We can create a “nailed down” fixation to the roof structure with screws, commonly using our Smartline and Strongline roof hooks. As an alternative, a hook can be suspended behind the battern, allowing the fixed and adjustable Slimline roof hook to be used.

Ease of assembly and speed are important issues to be taken into account in the development of roof mounting systems, together with a further important issue for pitched roof systems – flexibility, since there are many types of pitched roofs and each type imposes individual requirements on a sturdy structure. Our range for pitched roofs is both well planned and complete. The three basic systems below are applicable to many different types of roofs, like tiled roofs, steel roofs, corrugated roofs and standing seam roofs. Naturally, we supply the right, safe roof mount for every pitched roof.

Installing solar panels on buildings of any kind is a logical development, as the roof offers free space and often a surface large enough for a profitable additional function. Van der Valk’s solar mounting system for flat roofs was developed while taking roof and wind loads into account and, consequently, complies with the most stringent safety requirements. Our range for flat roofs is characterised by great efficiency and ease of assembly. The three south-oriented basic systems described below enable optimal utilization and maximum energy yield for each flat roof.

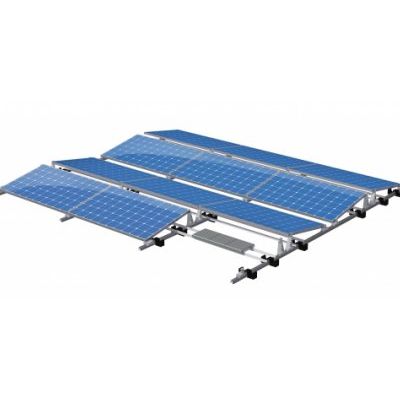

To utilise maximum available roof space and achieve constant energy output it’s necessary to choose a system that can support as many panels as possible. The east west systems of Van der Valk Solar Systems can hold up to 100% more panels per m2 with minimal additional materials relative to a south-facing system. The east west configuration allows rapid assembly (two panels per A-frame), optimum cooling (open structure) and low amounts of ballast.

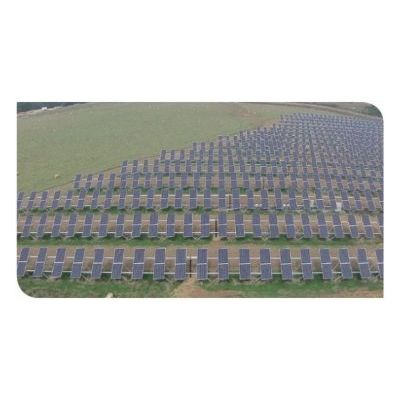

Open fields are highly suitable for the placing of solar installations. The ValkSolarTracker doubles the yield of a fixed installation. Along with more kWh per kWp, the ValkSolarTracker also ensures a more constant energy production throughout the day. The system described below can be mounted on any type of ground. Using screw piles, concrete pads, driven piles or ballast, you always have the right foundation for your situation.

The ValkPro+ L10 South or East-West and the ValkPro+ P10 South or East-West have different foundation methods. For example, the systems can be mounted using rubber tile carriers, mass blocks, or consoles. Rubber tile carriers are easy to transport and install due to their low weight and soft structure and they also protect the roof surface. The advantage of mass blocks is that they can immediately be used as a considerable part of the ballast. In addition, when mass blocks are used the height of the system is increased, which leads to easy mounting, for example, when applied as a field configuration. Consoles facilitate fixed mounting on the roof in areas with very high wind load or roofs that cannot bear any weight. This specific implementation guarantees water-proof sealing.
