Weishaupt products

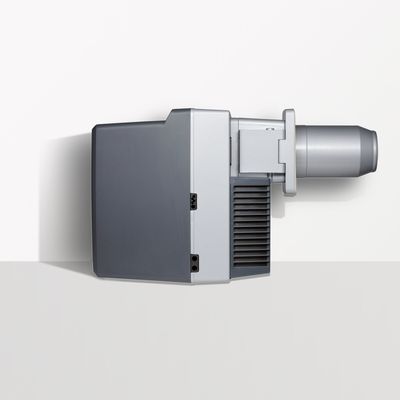

Weishaupt's WG5–40 compact gas burners are engineered to deliver outstanding reliability and efficiency across a wide range of applications. These burners, with capacities ranging from 43 to 2,390 MBTU/h, are ideal for diverse sectors including schools, hospitals, bakeries, and residential buildings. Their low-NOx technology ensures excellent emission standards, maintaining clean combustion with minimal environmental impact. Key features include a digitally managed combustion system, sound-attenuated air inlet housing for quiet operation, and a highly reliable ignition system. These burners can be easily integrated with building management systems via optional Modbus/field bus modules, enabling advanced remote control and monitoring capabilities. The precision in flame geometry matching allows for versatile usage across different heat generators like air heaters and steam boilers. Furthermore, the combustion manager's intuitive connection console simplifies maintenance by eliminating connection errors, thus ensuring seamless and efficient operation.

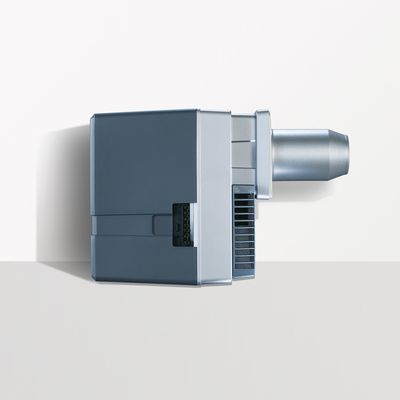

The Weishaupt WL5–40 compact oil burners are a versatile and efficient solution for a range of heating applications. With capacities ranging from 56 to 1,945 MBTU/h, these burners are suitable for domestic, commercial, and thermal process applications where gas is not available. Designed with safety and reliability in mind, the WL5–40 burners incorporate advanced Low-NOx mixing assemblies to ensure clean combustion and comply with strict emissions standards. These burners can operate on standard oil, low-sulphur oil, and bio-oil blends up to B10 without any performance concerns. The compact design allows for easy installation and maintenance, reducing costs significantly. Key features include a sound-attenuated air inlet housing for quiet operation, a digital combustion manager with integrated connection console, and optional VSD and O2 trim for enhanced reliability and efficiency. Furthermore, the burners offer seamless integration with building management and automation systems, enabling remote control, monitoring, and fault diagnosis. This futureproof system solution guarantees excellent performance and long-term viability for various heating applications.

Weishaupt's WGL30-40 dual-fuel burners offer a secure and flexible heating solution, capable of operating on both gas and oil. With an output range from 240 to 1,875 MBTU/h, these burners ensure versatility in various applications. Featuring an optional Modbus/field bus expansion module, remote fuel changeover between gas and oil is seamless. Digital combustion management contributes to exemplary energy efficiency by adapting to the boiler's heat requirements. The burners are equipped with a standalone motor-driven oil pump that disconnects during gas operation to conserve energy and protect the pump. The electronically controlled air damper closes fully during shutdown to maintain the combustion chamber's temperature. These burners support modern fuels, including low-sulphur oil and bio-oil blends up to B10. Noise reduction is achieved through sound-attenuated air inlet housing, and the burners are manufactured using top-notch materials, ensuring durability and a favorable price-performance ratio. The integrated connection console simplifies installation and maintenance, while the digital combustion manager facilitates remote control, monitoring, and integration with building management systems.

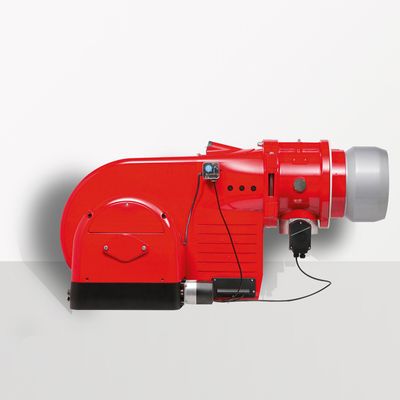

Weishaupt's WKmono-series burners are designed to handle industrial applications requiring high capacities ranging up to 58,000 MBTU/h, while maintaining a compact form factor with a length of just 64-1/8 inches. These burners utilize a robust combination of reliability, efficiency, and advanced digital combustion management. The digital system simplifies the regulation of gas and oil, making operation and maintenance user-friendly. The WKmono-series offers flexibility, being suitable for a wide range of fuels including natural gas, propane, and #2 oil up to B10. Engineered with components from the proven WK-series duobloc burners, they ensure excellent performance. The burners also feature advanced emissions control technologies, like multiflam® and 4LN for low NOx emissions, complying with stringent environmental standards. With a design that prioritizes ease of servicing and high operational reliability, these burners are integrated seamlessly into existing control systems and building management systems, offering a scalable solution for various industrial heating needs.
