KOHLER - Model MINIPowerPLUS - 1 – 5kVA, Single-Phase UPS System
Flexible tower or rack-mounted UPS system with a unique scalable design featuring easy-to-replace modules. Built for offices and IT rooms where space is limited and equipment must deliver value for money. Reliable and resilient, the single-phase MINIpower PLUS range provides power protection in 1.25kVA to 10kVA UPS systems. Expandable in 1.25kVA modular steps to 10kVA. Internal N+1 parallel redundancy for high availability and reliability. Up to 8 hours’ battery autonomy.
MINIpowerPLUS 5000 and 10000 models
The 5000 model takes up to 4 x 1.25kVA power boards for a maximum output of 5kVA.
The 10000 model takes from 4 – 8 x 1.25kVA power boards for a maximum output of 10kVA. The MINIpowerPLUS has internal N+1 parallel redundancy for high availability and reliability.

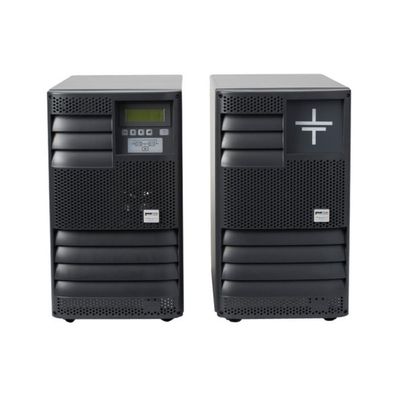

Flexible tower system
Space-saving tower delivering either up to 5kVA or up to 10kVA of power. A flexible uninterruptible power supply system for future proof scalability.
Rack-mounted version
19” rack-mounted UPS system with 4 power boards. Each UPS power board is 1.25kVA and can provide up to 5kVA in capacity or 3.75kVA in parallel redundant (N+1) mode. Additional backup UPS batteries can be added.
User-friendly display screen
Multi-functional display for regular monitoring of system performance. Shows battery life, current, frequency and power.
Communications options
Fitted with D-type connectors allowing for multiple external connections. Which is designed for small IT rooms and offices that require a single-phase UPS application to connect to external equipment.
Future-proof scalability
Keep lifetime costs to a minimum but still allow for future scalability by being able to add modules and batteries without replacing the whole system.
- Actual kVA : 1-10kVA
- Type : Single-phase
- Max. power per frame with N+1 redundancy : 8.75kVA N+1
- Power range per module : 1.25kVA
- Rated output voltage range : 220/230/240V single-phase
- Working mode : Online double conversion
- Efficiency : Up to 92%
- Power density per m2 : Up to 45 kW/m2 / 65kVA/m2
- Battery compartment : Option
- Maintenance bypass : Standard
- Network/web interface : Option
- Volt free contacts : Standard
- Input current distortion THDi @100% load : < 3%
- Input power factor @100% load : 0.99
- Scalable (N+1) : Yes (vertical)
- Hot-swappable modules : No
- Transformerless : No
- Standalone / Modular : Standalone, Rackmounted
