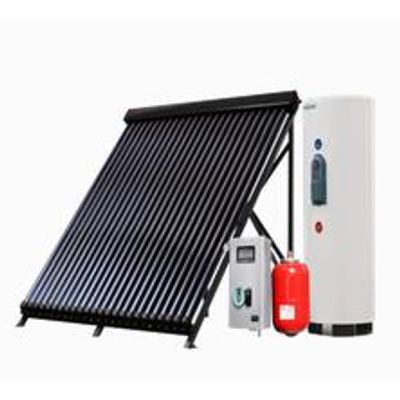

Qiruite - Model HSP-58 -100L- 2000L Split Pressurized Heat Pipe Solar Water Heater System

1. Strong hydraulic pressure hot water system
2. Keymark, CE certified solar hot water system
3. OEM service
4. Factory audited by TUV&SGS

Split high pressure solar water heater Key points

1. Strong hydraulic pressure makes your bath more comfortable: pressurized design with strong hydraulic pressure you can have hot water heater when you turn on your tap. The water rushes out with strong hydraulic pressure make your bathe more comfortable.
2. Modularized collector, arbitrary combination: collector consists of efficient heat pipes. Arbitrary combination according to your demand can supply enough hot water any time for your family.
3. Intelligent controlling: competitive and intelligent controlling system more convenient. You can know the temperature of water anytime via controller. The system controller has the anti-freezing function is that the temperature circulation will operate while it reaches the fixed temperature
4. Arbitrary combination with structure of the house: The collector can be put on both tilted roof and flat roof
5. Anti-freeze: No water inside the tubes when it works, and the system controller has the anti-freezing function is that the temperature circulation will operate while it reaches the fixed temperature
6. Multifunction: Bathing, washing, domestic heating

Solar Collector of solar Water Heater System

• Manifold: aluminum alloy 2.0mm outer, copper chanel inner
• Vacuum tube dimensions: 58mm x 1800mm, three target vacuum tube
• Bracket: 2.0mm aluminum alloy

Water Tank of Solar Water Heater SYSTEM:

1. stainless steel 304-2B inner tank, Galvanized steel outer tank.
2. Copper coils(single or two sides): Φ16mm,thickness1.0mm

Insulation thickness (mm): 55mm polyurethane

Work Station of Solar water heater System:

1. Deluxe Solar Pump Station (Including Wilo Pump, Controller, Temperature Sensor, expansion vessel)System
2. Max. Pressure: 12bar; Operating Pressure: 6 bar
