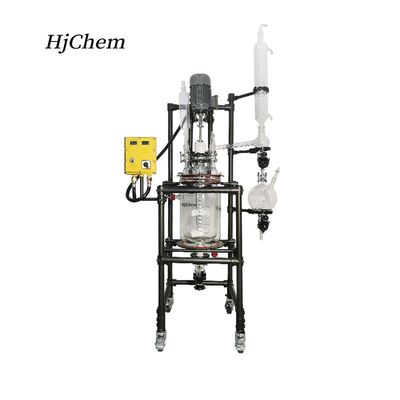

Hjchem - 10l Double Jacketed Glass Reactor with Teflon Coated Frame
10L Double Jacketed Glass Reactor with Teflon Coated Frame is very suitable for corrosion working environment.1. Volume: 100ml, 250ml, 500ml, 1L, 2L, 5L, 10L, 20L, 30L, 50L, 60L, 100L, 150L, 200L
2. Vessel: Single wall, double wall or triple wall available
3. Working pressure: Full vacuum to 0.05Mpa
4. Working temperature: -80°C ~ +250°C
5. Thermal shock resistance: 80°C
6. Wetted parts: Borosilicate glass 3.3, PTFE
7. Nozzles on the cover: stirrer, liquid feeding, solid material feeding, dosing addition, temperature sensor, reflux&distillation, standard 6 nozzles, also support customization.
1. Precision Temperature Control
The double-jacketed design isn’t just a feature. Whether you’re executing exothermic reactions requiring rapid cooling or managing delicate processes needing gradual heating, the reactor’s dual-layer glass ensures uniform thermal distribution.
2. Teflon-Coated Frame: The Invisible Shield Against Corrosion
Traditional stainless-steel frames corrode, but our proprietary Teflon coating transforms the reactor’s framework into an impervious fortress.
Resistant to acids, solvents and aggressive chemicals, this reactor won’t just survive harsh environments, it’ll thrive in them.
The non-stick surface makes post-experiment cleanup a 5-minute task, not a half-day chore.
3. Safety
For Pharmaceutical synthesis: Synthesize APIs or other intermediates with zero riks of metallic ion contamination.
For Nanomaterial development: Maintain ultrapure conditions for quantum dot or graphene production.
For Polymer chemistry, biofuel research, or green chemistry processes: Optimize biofuel or green chemistry processes with energy-efficient temperature management.
