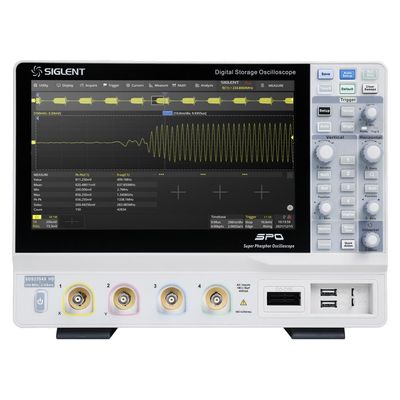

Siglent - Model SDS2000X HD Series - 12 bit High Resolution Oscilloscopes

SHARE

With the SDS2000X-HD Siglent enhances the commen oscilloscope ADC resolution of 8 bit to true 12 bit. This makes resolution accuracy 16 times higher than on common 8-bit oscilloscopes and shows more signal details. The oscilloscopes have bandwidths up to 350 MHz, upgradeable to 500 MHz1). Other partly standard or optional features are MSO-capability (mixed-signal/logic analyzer), a built-in arbitraty waveform generator, 2-Mpts hardware-accelerated FFT, Bode plot function, serial bus trigger and decode (many as standard, additional ones as software options), and more. The wide and clear 10.1"/25.65 cm TFT LCD with multi-touch gesture touch screen makes the devices easy-to-use.

Most popular related searches
power monitoring
  • High sampling rate with 12-bit ADCs (enhanced resolution to 15 bit). Resolution accuracy 16 times higher than on common 8-bit oscilloscopes.
  • Front ends with lower noise floor: 70 µVRMS at 500 MHz bandwidth and 0.5% DC gain accuracy.
  • "Cleaner"/"clearer" waveform display showing more signal details and allowing more accurate waveform measurements.
  • 100 MHz, 200 MHz, or 350 MHz bandwidth, upgradeable to 500 MHz1).
  • 100,000 Wfms/s waveform capture rate.
  • Deep record length of 200 Mpts.
  • Automatic measurements on more than 50 parmeters.
  • History waveform playback.
  • Mixed-signal (MSO) function.
  • Additional features and options: Bode plot; hardware-accelerated FFT up to 2 Mpts; power analysis; serial bus trigger and decode.
  • 10.1"/25.65 cm TFT LCD with capacitive multi-touch gesture touch screen.
  • Interfaces: USB Host and Device, Ethernet/LAN.
  • Built-in web-server supports remote control.

Benefits of the SDS2104X-HD, SDS2204X-HD, and SDS2354X-HD High-Accuracy Mixed-Signal Oscilloscopes

  • True 12-bit high resolution for more signal details.
  • Low noise floor and high accuracy.
  • 100, 200, 350, or 500 MHz1) bandwidth and advanced features.

  • Measuring high-precision sensors and actuators.
  • Medical equipment.
  • Laser pulses.
  • RF signals/modulated signals.
  • Power measurement.
  • and more.
