With the SDS2000X-HD Siglent enhances the commen oscilloscope ADC resolution of 8 bit to true 12 bit. This makes resolution accuracy 16 times higher than on common 8-bit oscilloscopes and shows more signal details. The oscilloscopes have bandwidths up to 350 MHz, upgradeable to 500 MHz¹⁾. Other partly standard or optional features are MSO-capability (mixed-signal/logic analyzer), a built-in arbitraty waveform generator, 2-Mpts hardware-accelerated FFT, Bode plot function, serial bus trigger and decode (many as standard, additional ones as software options), and more. The wide and clear 10.1"/25.65 cm TFT LCD with multi-touch gesture touch screen makes the devices easy-to-use.

Rigol DHO4000 4-Channel, 12 bit High-Resolution Oscilloscopes up to 800 MHz.With a new chipset "Centaurus" developed by Rigol, the DHO4000 series offers a family of digital oscilloscopes for design, debugging, and testing. The oscilloscopes achieves a fast waveform capture rate of 1,500,000 wfms/s with the UltraAcquire mode, 500 Mpts memory depth, 12 bit vertical resolution, all combined with excellent noise floor performance and vertical accuracy to meet your requirements for more accurate measurements.

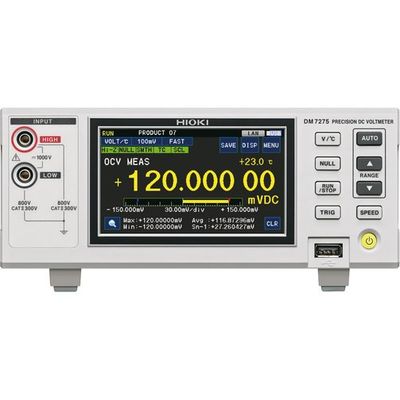

The HIOKI DM7275 and DM7276 are 7½ digit high-precision DC voltmeters with outstanding long-term stability, temperature characteristics, and 1-year accuracy of 9 ppm (DM7276) or 20 ppm (DM7275) in the 10-V range. The noise performance of the devices is approaching that of an an 8½ digit DMM and their noise immunity is very high thanks to a floating design. With all these featuzres, they are the ideal choice for used in advanced applications such as aging tests, transient characteristics monitoring, external potential measurement for lithium-ion batteries and more.

The Keysight 34420A nano-Volt, micro-Ohm meter is a high-sensitivity multimeter optimized for performing low-level measurements. It combines low-noise voltage measurements with resistance and temperature functions, setting a new standard in low-level flexibility and performance.

The Siglent SHA850A series are handheld portable spectrum, cable, and antenna analyzers with VNA option. The devices are powerful and flexible tools for field and outdoor RF applications, communication engineering, telecom operation and maintenance, radio management, factory production, education, teaching, and many more. With a frequency range up to 3.6 GHz (SHA851A) or 7.5 GHz (SHA852A), the analyzers deliver multiple operating modes and reliable automatic measurements.

The Aaronia SPECTRAN-V6-X series are high performance real-time spectrum analyzers for USB with a RTBW (real-time bandwidth) up to 245 MHz (via 2x USB). With a sweep speed of over 1 THz/s, the devices set new standards in the USB compact class. Any number of devices can be cascaded to achieve an even higher real-time bandwidth. For example, a real-time bandwidth of 1 GHz is already achieved by using four SPECTRAN-V6-X devices. The stackable aluminum housing facilitates the parallel use of multiple units.

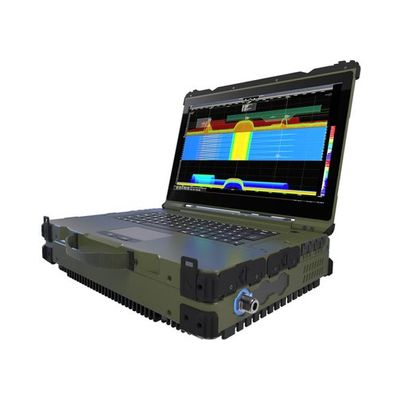

The Aaronia SPECTRA-V6-MIL is an outdoor real-time spectrum analyzer in military standard. The device in laptop design is predestined for processing and storing I/Q data. It offers all the advantages of an extremely rugged laptop in combination with our SPECTRAN-V6 real-time spectrum analyzer. Designed to withstand the most extreme conditions, it is independently tested and certified to MIL-STD-810G and IP65.

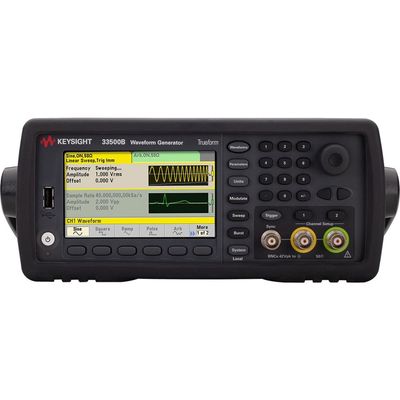

Keysight 33500B series waveform generators with exclusive Trueformsignal generation technology offer more capability, fidelity and flexibility than traditional DDS generators. Easily generate the full range of signals you need to your devices with confidence the signal generator is outputting the signals you expect. Point-by-point arbitrary waveform capability with sequencing for more accurate representation of user-defined signals. Pulses up to 30 MHz with 10x less jitter for more precise timing.
