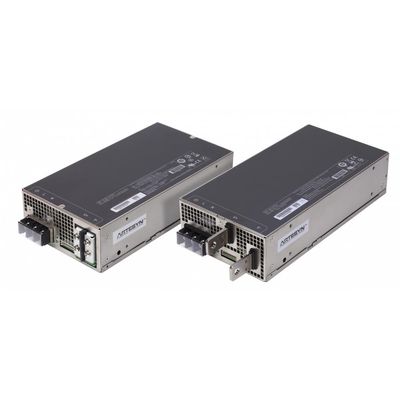

Advanced Energy - Model Artesyn - LCM1500 Series -1500 W Bulk Front-End Power Supplies System
Advanced Energy`s LCM1500 provides a low cost solution to Industrial and Medical single output high power requirements. Full featured, the 2.4" x 5" x 10" enclosed form factor utilizes a smart fan for self contained thermal management at very low acoustic noise levels. Digital DSP control allows for a high level of modification flexibility. Voltage output for the series ranges from 10.8 V to 52.8 V at a continuous output power of 1500 W. The LCM1500 also provides an optional 5 V standby and many optional I/O configurations.
- 10% adjustment range
- 12 Watts per cubic inch
- 1500 Watts output power with no derating
- 40 °C to 70 °C with derating
- High efficiency: 89% typical
- Latest CCC approvals (5000m)
- Optional 5V @ 2A housekeeping
- RoHS 2
- Hold-up Time 20 mSec
- Power Factor 0.99 Typical
- Inrush Currect <= 25A Peake
- Frequency 47 - 440 Hz
- Input Range 90-264 VAC
- Leakage <0.3mA at 264 VAC
- Efficiency >89% TYP
- Adjust Range +/- 10%
- Over Voltage Protection 125% to 145% of rated output
- Over Current Protection 105% to 125% of rated output
- Current Share Forced to within 10%
- Max Units in Parallel 10
- Noise (P-P) 1% max
- Total Regulation +/- 2.0%
- Fan Noise <45dBA, 80% load 30C, off with inhibit
- Conformal coat option
- DSP controlled
- EMI Class A
- Industrial/Medical Safety Approvals
- Low cost
- ORing FET
- Remote margin programming
- Variable speed smart fans
- Output Power (W): 1500
- Length (Inches): 10
- Width (Inches): 5
- Height (Inches): 2.4
- Mounting Type: Embedded PSU
- Minimum Output Current (A): 0
- Maximum Output Current (A): 133
- Output Voltage Range (V): 0V to 52.8V
- Minimum Output Power (W): 0
- Maximum Output Power (W): 1500
- Minimum Input Voltage (V): 90
- Maximum Input Voltage (V): 264
- Warranty (Years): 3
Universal PMBus GUI Software Package
The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.
