Zhejiang Sandi Electric Co., Ltd.
About
  2. Companies
  3. Zhejiang Sandi Electric Co., Ltd.
  4. Products
  5. Sandi - Model SPIC-15KW - 15kw All in ...

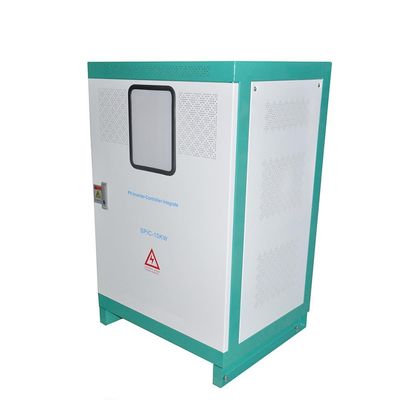

Sandi - Model SPIC-15KW -15kw All in One Hybrid Inverter with Charge Controller Integrated

SHARE

Our solar inverter with charge controller integrated is designed according to the characteristics and requirements of green new energy system. It is suitable for the requirements of high quality and stability of solar energy PV power system. The PV modules convert the solar energy to DC power and charging the batteries via charge controller, meanwhile the batteries supply DC power to off grid inverter convert DC power to AC power, finally the AC power will be supplied to AC loads, with the high utilization efficiency of solar power.

Most popular related searches
charge controller
off-grid inverter
solar inverter
solar energy
inverter
solar power
battery supply
energy network
photovoltaic power
hybrid inverter
  • Model No.: SPIC-15KW
  • Brand Name: SANDI
  • Country of Origin: China
  • Unit Price: US $ 4600 / pc
  • Minimum Order: 1 pc
  • Using the fifth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function, the protection for short circuit, over load, over temperature is more safe and reliable. It’s service life can up to 15 years or more.
  • Two kinds of start mode: Reduction Voltage Start and Variable Frequency Start. Customers can set start mode according to the type of their load.
  • The output frequency can be set, this function is very convenient for customer.
  • The output voltage can be set between +20 % to -40 % of rated voltage. It’s a great convenience to users.
  • The DC input voltage range can also be set. Over-voltage point, under-voltage point, over-voltage recovery point, under-voltage recovery point all can be set via the LCD panel. Convenient for increasing or reducing the quantity of batteries, photovoltaic modules also can be used flexibly.
  • Pure sine wave output. with good transient response less than 50MS, little harmonic distortion, higher conversion efficiency and stable output voltage.
  • Powerful data display and fault instruction function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, output power KWH, time and date, temperature, fault code display.
  • Product have passed the European CE (EMC and LVD) certificated and accredited by Australia CEC energy network.
