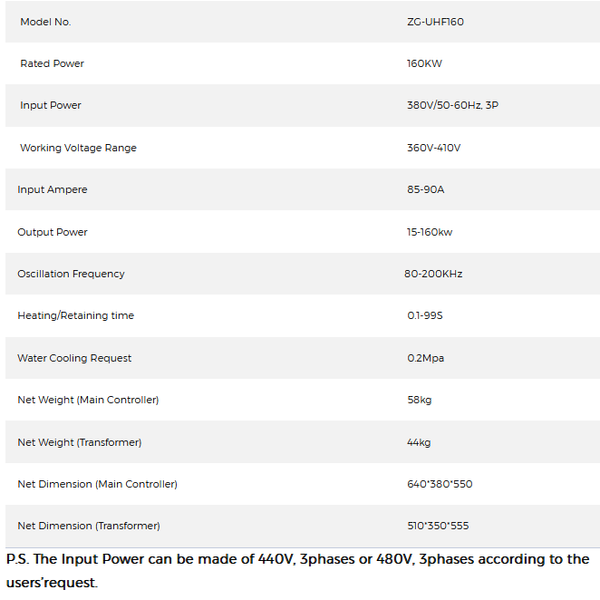

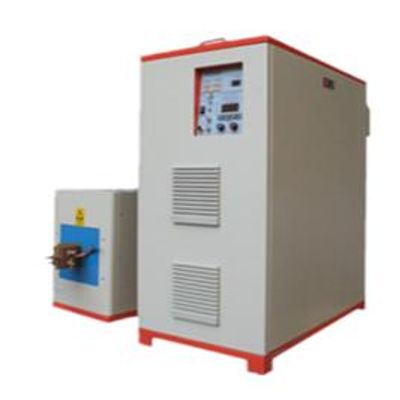

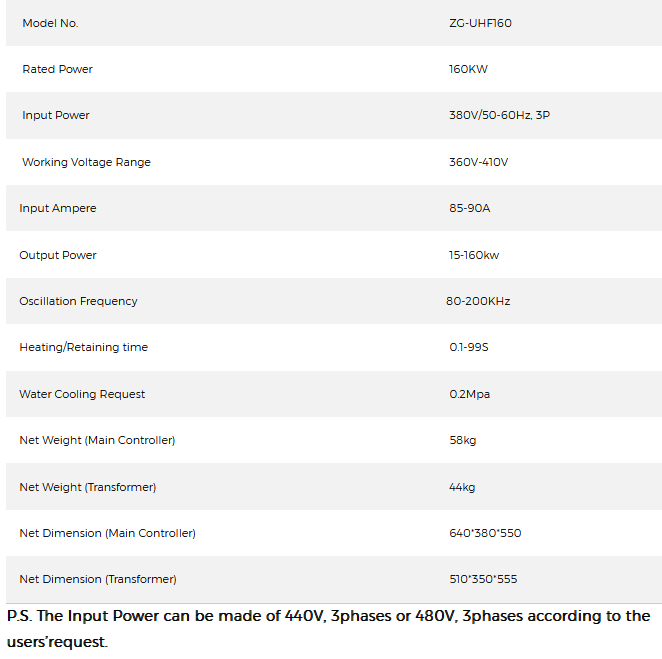

Hitfar - Model ZC-UHF160 - 160KW/80-200KHZ Ultra-High Frequency Water Cooling Induction Heating Machine

(Continued after ZG-UHF120)

• INPUT OVERVOLT: input overvoltage, the input voltage is too high if this light is on and beeps
• UNFIT FREQ: Unfit frequency. When the oscillation frequency is lower or higher, this light is on;
• KHZ [Frequency indicator]: When this indicator is on, it indicates that the current display is the oscillation frequency (KHZ)
• A [Current indicator]: When this indicator is on, it means that the current displayed value of the digital display meter is the output oscillating current (A)
• V [Voltage indicator]: When this lamp is on, it means that the current value displayed on the digital display meter is inverter voltage (V)
• KW [Power indicator]: When this light is on, it indicates that the current display is the output oscillation power(KW)
• HEAT POWER ADJUST: turn right for heating power up, turn left for heating power down. For the first time to use the machine. Please turn it the left end before you start the machine, and then turn right slowly to adjust a suitable heating power you needed.
• START: push this button once to start heating. It has no use if we use the petal switch(remote control).
• STOP: push this button once to stop heating.lt has no use if we use the petal switch(remote control).
• SWITCH OF CONSTANT CURRENT OR VOLTAGE & CONSTANT POWER: this panel is used for ZC-MF & ZC-UHF series. When it is used for ZC-MF series, it means CONSTANT VOLTAGE & CONSTANT POWER working mode;
• When it is used for ZG-UHF series, it is in CONSTANT CURRENT & CONSTANT POWER mode;

1. After heat treatment by ultra high frequency induction heating machine, there is a thick ductile zone under the hard layer, which has better compression internal stress, and makes the anti-fatigue and fracture ability of the workpiece higher.
2. Ultra high frequency induction heating machine is very easy and proper to install on the production line, easy to realize mechanization and automation too.
3. Ultra high frequency induction heating machine are mall in dimension which can effectively reduce transport charges.
4. ZG-UHF series are kind of multi-purpose machine, which can be completed quenching, annealing, tempering, normalizing, tempering and any heat treatment processes and also can be used for welding, melting, hot assembly, thermal disassembly and diathermy forming work.
5. Easy to use. For example we can be turned on or off at any time without preheating.
6. Easy to operate We can choose to operate manually or automatically.
7. 100% loading: it can work continuously for a long time, or it can be used randomly.
8. High utilization rate of electric energy, environmental protection and energy saving.
