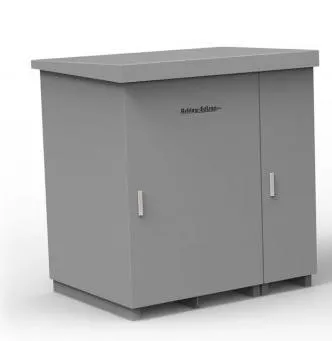

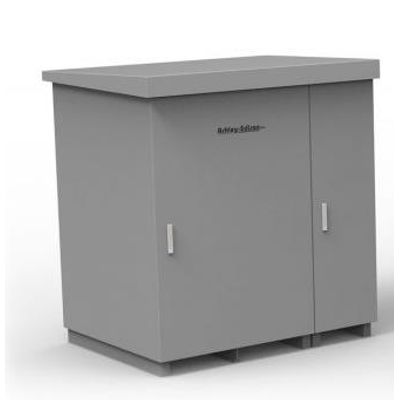

Ashley-Edison - Model CVC-H -220V - 240V - 2 Wire Voltage Drop Compensators
Purposefully designed with the sole intention to eliminate high inherent voltage drops, Ashley-Edison’s Voltage Drop Compensators solves this by significantly boosting up the low voltage at incoming supply to its optimal set output value and maintains it continuously and automatically. This results in substantial cost savings on reduced electrical power cables, conventionally used to overcome voltage drop.
Overcurrent Protection.
Manual Electronic Control Bypass Facility.
Capability
For loads with an inherent initial high current draw on start-up.
Protects electrical and electronic loads against harmful high-energy surges, transients and voltage spikes.
Loading Protection in the event of Phase Failure.
Protection of the load from momentary overvoltage situations on startup.
Ability to automatically shut down the Voltage Stabiliser in the event of the input supply voltage going outside the input voltage window.
Protection against extremely high voltage surges and transients caused by lightning strikes on the supply line.
Standard for outdoor models
1KVA ~ 100KVA
- Input Range:
From 77V~133V (depending on model selection) - Output:
220V / 230V / 240V - Indoor IP20 / Outdoor IP54 Enclosure
- Input Circuit Breaker
- Floor Standing
Massively reduce large and expensive electrical power cables by “compensating” for high voltage drops, the cost-effective way. This added advantage also ensures cable installations are made more convenient due to smaller cable sizes.
Ashley Edison’s proven, field-tested Parallel Redundant Voltage Regulation Control Modules (VRCM) are incorporated on each phase of our Voltage Drop Compensators. In the unlikely event of a fault on one module, the other parallel module will operate automatically without causing interruption to the load. The other unaffected phases will operate as normal, ensuring continual voltage control regulation, whilst compensating for voltage drop at the load end.
Regardless of load change on demand, the output voltage is kept constant, from no load to full load. This optimises and prolongs equipments’ life span, leading to more passive savings from reduced maintenance costs, while concurrently taking care of voltage drop issues .
The Ashley Edison Voltage Drop Compensator ensures loads are receiving appropriate and stable voltage, improving overall system performance and efficiency, minimising unforeseen system downtime.
