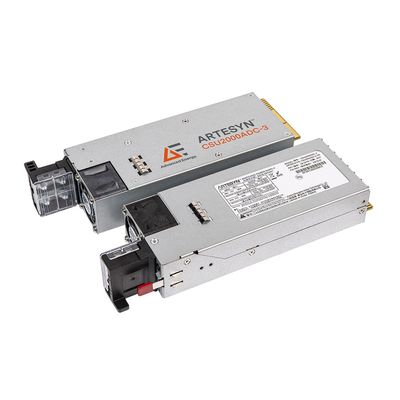

Advanced Energy - Model Artesyn - CRPS - CSU2000ADC Series - 2000 W Distributed Power System
Advanced Energy`s Artesyn CSU2000ADC is housed in the industry standard 1U x 73.5 x 185 mm form factor featuring -48 VDC input voltage. This DC-DC power supply belongs to the CRPS family of products, and matches the mechanical form and fit of Advanced Energy`s AC-DC power supplies. The common form, fit, and function for all products in the family provides a path for power capacity flexibility, future proofing your system designs.
Most popular related searches
AC-DC power supply
DC power supply
power supply unit
power engineering
DC power unit
distributive power
distributed power
high power density
power distribution system
package power
- 1U power supply
- 2000 W output power
- High density design: 62 W/in3
- N+M redundant N+M ‰¤ 4
- Input Range -40 to -72Vdc
- Main Output 12.2 V
- Main Output Current 163.90 A
- Standby Output 12.0 V
- Standby Output Current 3.5 A
- Max Continuous Power 2000W
- Load Sharing Active load sharing within 6% of full load rating
- Accurate input power reporting
- Active current sharing
- Compatible with Artesyn"™s Universal
- Full digital control
- High power and short form factor
- Hotpluggable
- Inrush current control
- PMBus GUI
- PMBus® compliant
- Reverse airflow option
- Uses twohole terminal lugs to handle high input current
- Power Good Active High
- Remote Enable Active Low
- Digital Communication PMBus
- Output Power (W): 2000
- Length (Inches): 7.28
- Width (Inches): 2.89
- Height (Inches): 1.57
- Mounting Type: Rack-mount
- Minimum Output Current (A): 0
- Maximum Output Current (A): 163.9
- Output Voltage Range (V): 11.4V to 12.8V
- Minimum Output Power (W): 0
- Maximum Output Power (W): 2000
- Minimum Input Voltage (V): -72
- Maximum Input Voltage (V): -40
- Warranty (Years): 2
Universal PMBus GUI Software Package
The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.
