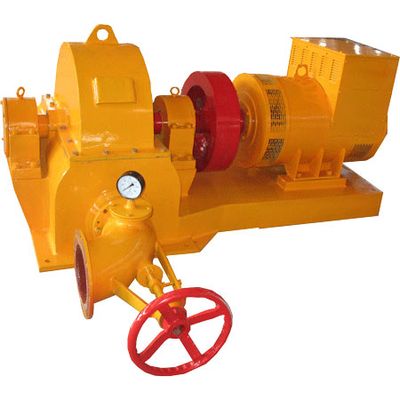

HS Dynamic - 20kw-100kw Pelton Turbine Generator for Grid and Off-Grid Usage
Pelton turbine is the active turbine with the water flow come out from nozzle along the tangent of the turning wheel and strikes on blades, the power therefore being made. It is applicable for the power station with great load change and slight water flow and it is the only one of the impulse turbines that been used for large-scale units. Our Pelton turbine generator is suitable to meet micro-sized, mini-sized and Small-sized hydropower project, and it’s efficiency is higher than turgo turbine, usually from 80%-89%, it is applicable for the hydraulic head range of 40-500m
Most popular related searches
Pelton turbine
turbine generator
off-grid power
permanent magnet generator
turgo turbine
hydropower generation
power grid
permanent magnet motor
hydraulic generator
cross-flow turbine
- Compact structure, easy to install, very little civil works as Turgo turbine.
- Reliable operation, easy to control.
- Hydraulic head range of 50-500m.
- Efficiency range is usually from 80% to 89%, more better than Turgo tubine, but charger more.
- single nozzle, two nozzle and four nozzles for option, more nozzle to be more efficiently.
- it can be used at middle and high head projects area like mountain site.
- Check left side table, you will know how much power you can get based on different Head and Flow data, if you can not find it in the table, just tell me your project Head and Flow directly.
- Check below Off-grid power and Grid power selection to know what your usage for your power plant.
- Check below hydropower generator selection to know what kind of generator you need for your power plant.
- You still can not sure about hydropower? Click here to know more
- It’s time to Build your personal home hydro turbine plant. Quote us now!
- Base Seat No.: 423 – 3250;
- Single hydroelectric generator capacity: 5 KW -10,000 KW;
- Efficiency: 89-95%
- Pole number: 4 – 60
- Rotational speed: 250~1500rpm
- Voltage includes two levels: single phase 110v-120v and 220v-240v, three phase 380v-480v and 6300v.
- Insulation level: B and F
- Motor casing protection grade: IP44-IP54
- Cooling method: ICO141
- Rotation speed: 125 rpm – 3000 rpm
- Efficiency: 90%-96%
- No Excitation unit needed
- Bearing: SKF
Using condition:
- Ambient air temperature: respond to the season change, but not higher than 40?
- Elevation: less than 1000m
- Voltage: as contract requirement. The voltage is effected when the speed change.
- Current: it is related to the motor load and voltage.
- Connection method: motor principal windings Y connection, separately it is U(A)?V(B)?W(C)
- Operating procedure: S1 (continuous)
- Stator winding limited exotherm(electric-resistivity method):less than 80K.
