Solar heat pipe and its inner medium for thermal conduction, with a quick start and super daily efficiency about 55% in summer and 42% in winter, much more than that of the all-glass tube
The flow passage is inner closed and pressurized, no water or medium goes through glass vacuum tubes, no freeze to break vacuum tubes, able to serve in extremely cold weather
Heat pipe tip is inserted into a closed cannula welded into the copper flow passage, collector works well even withdrawal one or several heat pipe vacuum tubes
Aluminum alloy as bracket with super performance in chemical resistance, universal bracket suitable for slope and flat roof installation
Modularized collector, arbitrary combination with any architectural structure, adaptable to either slope roof or flat ground or upright walls, almost maintenance free collector

Warranty: 5 years international responsibility for solar collector and 15 years for glass tubes due to original quality problems

NLIGHT heat pipe solar collector

Patented technology heat pipe has faster start speed, higher temperature and longer using life.
Glass wool and PU foam combined insulation layer, less heat loss than single glass wool insulation layer.
Double-jacket heat pipe bottom ensures the perfect performance of frost-resistance. INLIGHT heat pipe solar collectors work very well in extreme cold regions.
Module design, alterable frame and support, make the installation place quite flexible. They can be fixed on ground, roof or exterior wall easily

Domestic hot water for shower, washing. Solar Thermal, Project: such as School, Hospital, Hotel.

Yinuo - 24 Tubes Heat Pipe Solar Collector

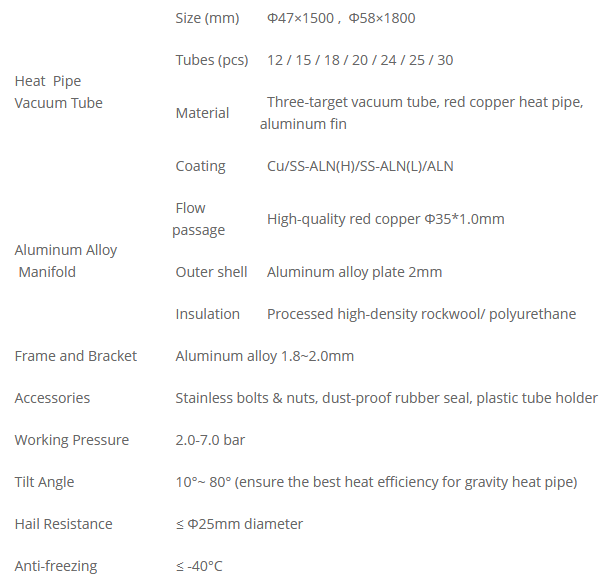

Products Details
