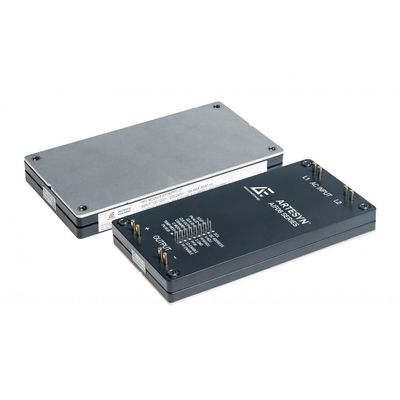

Advanced Energy - Model Artesyn - AIF06ZPFC Series -2400 W Full Brick PFC Converter
The 2.4 kW AIF06ZPFC series power factor correction module presents a unity power factor from an 85 to 264 VAC input and delivers a high 97.3% conversion efficiency and nominal non-isolated output of 400 VDC.
The series features monitoring, protection, and adjustment facilities, a built-in PMBus® interface, internal memory, and internal inrush limiting. Accurate current sharing allows paralleling and a thermal base plate allows a baseplate operating temperature range of -20 to +100? with startup from as low as -40?. Featuring an encapsulated standard 2.4 x 4.6-inch (61 x 116.8 mm) full-brick form factor and an installed height of 0.55 inches (13.7 mm), the series has a power density of 395 W/inch³ (24.1 W/cm³). Insulator-sheet and EMI-shield options are available.
- Input range 85 - 264Vac
- Output current 6 Amps maximum
- Output Voltage 400Vdc nominal
- Output power 1,400W between 85Vac and 180Vac
- Output load regulation 1% Vout load regulation
- Output power 2,200W between 180Vac and 200Vac
- Output power 2400W between 200Vac and 264Vac
- Mechanical 2.4 by 4.6 inch full brick
- Inrush current limit Function provided internal to the AIF06
- Parrallel module -01L can be used with 1 or 2 modules
- Parallel module can be used with 3 to 10 modules
- Enable function Positive or negative enable variants
- Isolation Non-isolated.
- Control PMBus interface provided.
- Output Power (W): 2400
- Input Voltage (V): 85 to 264
- Operating Temperature (°C): -40 to +100
- Length (Inches): 4.6
- Width (Inches): 2.4
- Height (Inches): 0.55
- Mounting Type: BMP; Through Hole
- Minimum Output Current (A): 0
- Maximum Output Current (A): 6
- Output Voltage Range (V): 330V to 408V
- Minimum Output Power (W): 2400
- Maximum Output Power (W): 2400
- Minimum Input Voltage (V): 85
- Maximum Input Voltage (V): 264
- Warranty (Years): 2
