Innoventum DALIFANT - 25 kW Farm Plant for Small-scale Wind Power
Dalifant is a small wind turbine solution designed to yield maximum energy at a given rotor diameter. It is installed on a design-protected 20 metre wooden tower created by InnoVentum. The Dalifant is suitable for a variety of applications. It can provide electricity for an eco-farm, a larger house, a small-scale industrial site - power any appliances that require electricity.
- Annual electricity production : 38 000 kWh
- Measuring power at 12 m/s : 11 kW
- Rotor diameter / SWEEPED AREA : 13 m / 133 m2
- Diameter, the base of the tower : 4,8 m
- Mains connected / standalone : Nätansluten
- Noise level : 40 dB(A) vid 100 m (8 m/s)
- Tower hub height : 19,8 m
The wind turbine on our DALIFANT has undergone extensive international test programs to ensure quality and safety. It has been approved for the UK’s Microgeneration Certfication Scheme (MCS), has been rigorously tested in the US, and has Danish HBO certification. The wind turbine has 3 different safety systems that protect against extreme wind conditions.

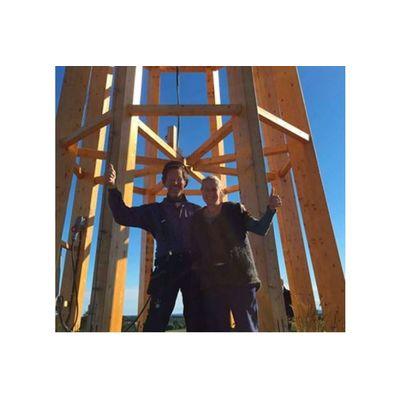

Installation of the farm plant DALIFANT is carried out by lifting the eight wooden legs that have been fixed in the ground. The turbine is then mounted on top of the wooden structure, which enables the installation to be completed quickly and efficiently. Click on the photo to view an installation gallery. In most cases, we use screw foundations for our solutions, which is a more environmentally friendly alternative to conventional concrete foundations. Through screw foundations made of recycled metal, we minimize both carbon dioxide emissions by 85-90% and the impact on the local environment, as no excavation is needed. In addition, it enables a significantly faster and more efficient installation.
