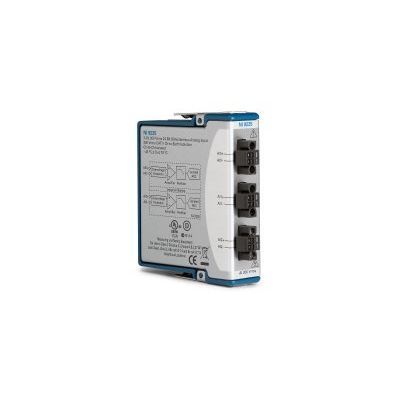

NI - Model 9225 - 3-Channel, 300 Vrms Analog Input Module
The NI‑9225 performs differential analog input. The wide measurement range is well suited for high-voltage measurement applications such as power metering, power quality monitoring, motor test, battery stack testing, and fuel cell tests. You can perform transient and harmonic analysis with high-speed simultaneous sampling. In addition, you can prevent ground loops and add safety to a system with 600 Vrms channel‑to‑channel isolation between the three NI‑9225 channels.
Most popular related searches
channel-to-channel isolation
high voltage measurement
fuel cell test
power quality monitoring
fuel cell testing
power meter
battery stack
power quality
fuel cell
battery testing
- 600 Vrms channel-to-channel isolation
- 50 kS/s/ch simultaneous inputs
- Built-in antialias filters
- 300 Vrms measurement range
- Connectors and high-voltage backshells included
General
- Product Name : NI 9225
- Product Family : Industrial I/O
- Form Factor : CompactDAQ , CompactRIO
- Part Number : 780159-02 , 780159-01
- Operating System/Target : Real-Time
- LabVIEW RT Support : Yes
- Measurement Type : Voltage
- Isolation Type : Ch-Ch Isolation
- RoHS Compliant : Yes
- Signal Conditioning : Anti-aliasing filter
