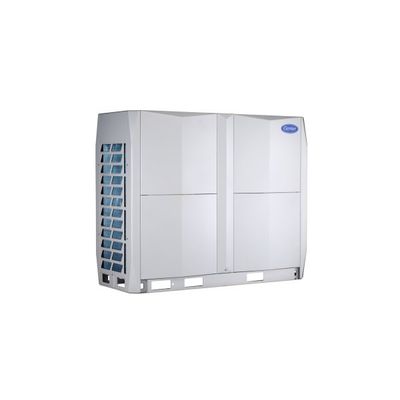

Carrier - Model 38VMR - 3-Phase Heat Recovery System

The Carrier 38VMR VRF 2-pipe heat recovery system is a combination of an outdoor unit with multiple style indoor units connected by refrigerant piping and wiring. Heat recovery outdoor unit lineup is a single module up to 28 tons, available as small and medium cabinet size.

Most popular related searches

Product Features

Available in 6 – 28 ton non modular design
Industries most compact 20 ton VRF system
Ability to connect up to 64 indoor units
2-pipe heat recovery system
High performance outdoor units with all inverter driven scroll compressor
DC inverter condenser fan motor
208/230-3-60Hz or 460-3-60Hz voltage
Cooling ambient operating temperature is 14⁰ F to 122⁰ F and heating ambient operating temperature is -13⁰ F to 60⁰ F
Connected capacity is up to 150%

Reliability Features

All equipment wiring complies with NEC requirements
Unit constructed in accordance with ETL requirements
Unit performance is in accordance with AHRI 1230 standards
Compressor and condenser fan motor are inverter driven
Finned tube heat exchanger
Suitable for R-410a refrigerant

Installation Features

System utilizes 2 pipes to connect to multiport distribution controller(s)and up to 64 indoor units
Integrated controls design allows for complete system control
Single power connection for 28 ton systems
System utilize quick connect controls system

ALL PARTS LIMITED WARRANTY

Company provides a Five-Year Limited Warranty on all parts and components, except refrigerant, air filters and filter driers which are not included in any part of the limited warranty.

SEVEN YEAR LIMITED WARRANTY ON COMPRESSOR ONLY

Company provides a Seven-Year Parts Only Limited Warranty on the Compressor
