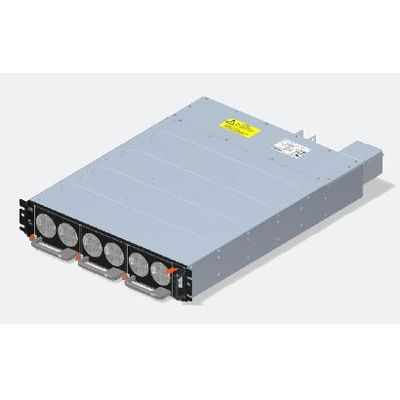

Advanced Energy - Model Evergreen Vento - FCM30K - 30,000 W Bulk Front End System
Advanced Energy`s FCM30K series provides for a very wide range of AC-DC embedded power requirement. Featuring high build quality with robust screw terminals, long life, and typical full-load efficiency of greater than 95.5%, these units are ideal for use in industrial and medical applications. They are backed by a comprehensive set of industrial and medical safety approvals and certificates. Variable-speed "smart fans" draw on software controls developed by Advanced Energy to match fan speed to the unit`s cooling requirement and load current. Slowing the fan not only saves power but also reduces wear, thus extending its life.
Most popular related searches
AT A GLANCE
- Total Power: 30,000 W
- Input Voltage: 187 to 528 VAC, 3 Phase 3 Wire + PE
- Number of Outputs: Single
COMPLIANCE
- EMI Class A, with 6 db margin
- EN61000 Immunity
SAFETY
- UL/IEC 62368-1
- CE LVD + RoHS (EN 62368-1 + RoHS)
- Demko CB Report for I EC 62368-1
- 30,000 W output power
- 86.4 mm H x 448 mm W x 595 mm L
- -40 to +50°C
- 5 V at 2 A housekeeping
- High efficiency: >95.5% typical at full load
- Supports NFC Tag Application
- Semi F47 compliance
- Five-year warranty
