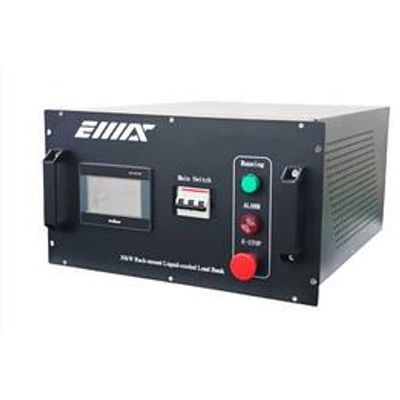

Emax - Model IMAX8330 -30kW Rack Mounted Liquid Cooled Load Bank with Remote Control
This 30kW rack-mounted liquid-cooled load bank is our latest R&D product, specially designed for data center applications. It features a high adjustment precision of 0.1kW and integrates key components including a PLC, pressure sensor, flow meter, and temperature sensor. The system uses DN25 stainless steel water pipes and supports a maximum flow rate of 40LPM, making it suitable for testing a variety of data center equipment such as CDUs (Coolant Distribution Units), PDUs (Power Distribution Units), and more.
Most popular related searches
- Working Cycle: Continuous operation.
- Ambient temperature: -10?~40?
- Operating environment humidity: 0~95%
- Dimensions: Height 6U, W483 * H264 * D800mm
- Instrumentation: Digital metering (V, A, kW) and data logging.
- Control Power: Via external 220V AC / Testing circuit.
- Inlet water temperature: 5-40?
- Load Elements: High-capacity Nichrome load elements. Elements are fully supported with stainless steel rods and high-temperature refractory ceramics for quick heat discharge.
- Safety Features: Over-temperature, over/under voltage, cooling-air loss, and current imbalance protection.
- Load Connections: 5-pin IEC plug
- Daisy Chained: Multiple load banks can be hooked together for higher load capacity.
- Enclosure: Heavy gauge steel outdoor enclosure with powder coat finish. Hinged access doors with lockable latches. Forklift pockets for easy mobility.
