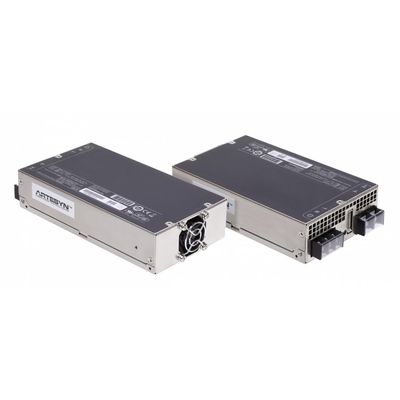

Advanced Energy - Model Artesyn - LCM300 Series -310 to 350 W Front-End AC-DC Power Supplies System

SHARE

The LCM300 series of enclosed front-end AC-DC power supplies comprises five single-output models, providing standard voltages of 12 V, 15 V, 23 V, 36 V, or 48 V, plus a 5 V standby output.

Most popular related searches
AC-DC power supply
DC power supply
power supply unit
power supply system
voltage control
voltage controller
power factor
DC power unit
DC power system
battery management

The series is medical-safety approved and accepts a universal input of 90 to 264 VAC with a full-load efficiency of 91%. These PMBus®-compliant digitally-controlled power supplies offer a high-level modification flexibility for application-specific functions such as special battery charging and management, peak load handling, voltage control, and fan speed profiles. Compactly housed in a 4 x 7 inches enclosure less than 1U high, the power supplies incorporate built-in smart fans for cooling and deliver up to 310 W of output power. The 24 V and 36 V models can deliver up to 350 W at operating temperatures up to 45°C.

  • +/ 20% adjustment range
  • 350W peak power
  • 40 to +70 Dec C operation (with derating above 50 C)
  • High Efficiency 91%
  • Option 5V standby
  • Input Range 85-264 VAC 127-374 VDC
  • Frequency 47-63 Hz
  • Inrush Current <= 20 A Peak
  • Power Factor 0.98 TYP
  • Hold-up Time 20 mSec
  • Efficiency >91% TYP
  • Leakage <0.3 mA @ 264 VAC
  • Set Point +/- 0.5%
  • Total Regulation +/-2.0%
  • Noise (P-P) 0.01
  • Max Units in Parallel 10
  • Current Share Forced to within 10%
  • Over Current Protection 105% to 120% of rated output
  • Over Voltage Protection 125% to 145% of rated output
  • Fan Noise <45dBA, 80% load 40C Fan Off with Inhibit

  • Conformal Coat Option
  • DSP Controlled
  • EMI Level B
  • Industrial/Medical Safety
  • Integrated ORing FET
  • Low Cost
  • Margin Programming
  • Optional Conformal Coat
  • Optional Constant Current
  • PMBus Compliant
  • Variable Speed "Smart Fan"

  • Output Power (W): 300
  • Length (Inches): 7
  • Width (Inches): 4
  • Height (Inches): 1.61
  • Mounting Type: Embedded PSU
  • Minimum Output Current (A): 0
  • Maximum Output Current (A): 25
  • Output Voltage Range (V): 9.6V to 57.6V
  • Minimum Output Power (W): 0
  • Maximum Output Power (W): 300
  • Minimum Input Voltage (V): 90
  • Maximum Input Voltage (V): 264
  • Warranty (Years): 3
